TDA5051AT/C1,518 - NXP

Description: Telecom Interface ICs HOME AUTOMATION MODM

Download TDA5051AT/C1,518 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

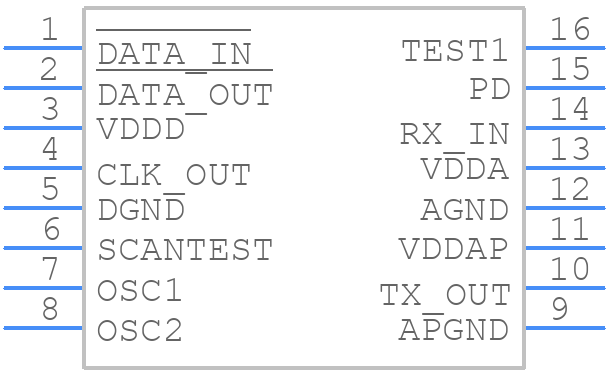

Symbol
TDA5051AT/C1,518 - NXP - PCB symbol
click to zoom
PCB Footprints
TDA5051AT/C1,518 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO16 SOT162-1
click to zoom
3D Models
TDA5051AT/C1,518 - NXP - 3D model - Small Outline Packages - SO16 SOT162-1
click to zoom

TDA5051AT/C1,518 Details

  • Manufacturer Part Number:

    TDA5051AT/C1,518

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT162-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    R-PDSO-G16

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    0.068 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TDA5051AT/C1,518 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA5051AT/C1,518 involves keeping the input and output stages separate, using a star-ground configuration, and minimizing the length of the power supply lines. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow the recommended PCB layout and use a low-pass filter on the output.
  • The maximum allowed voltage on the input pins of the TDA5051AT/C1,518 is 6.5V. Exceeding this voltage may damage the device.
  • To troubleshoot issues with the TDA5051AT/C1,518, check the power supply voltage, ensure proper decoupling, and verify the PCB layout. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
  • The TDA5051AT/C1,518 is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA5051AT/C1,518 Overview

Use the download button to access the TDA5051AT/C1,518 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA50, or try a keyword search, such as Modems

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
