TDA7317 - STMicroelectronics

Description: FIVE BANDS DIGITAL CONTROLLED GRAPHIC EQUALIZER VS Supply Voltage 10.2 V Top Operating Temperature Range -40 to +85 °C Tstg Storage Temperature Range -55 to +150 °C Rtjvins Thermal Resistance Junction pins max 85 °C/W

Download TDA7317 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

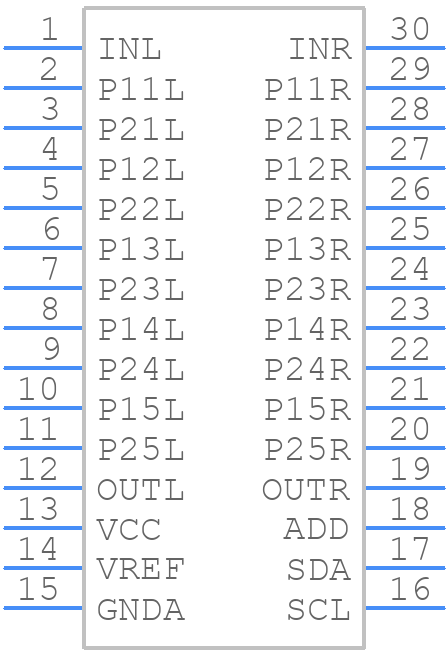

Symbol
TDA7317 - STMicroelectronics - PCB symbol
click to zoom

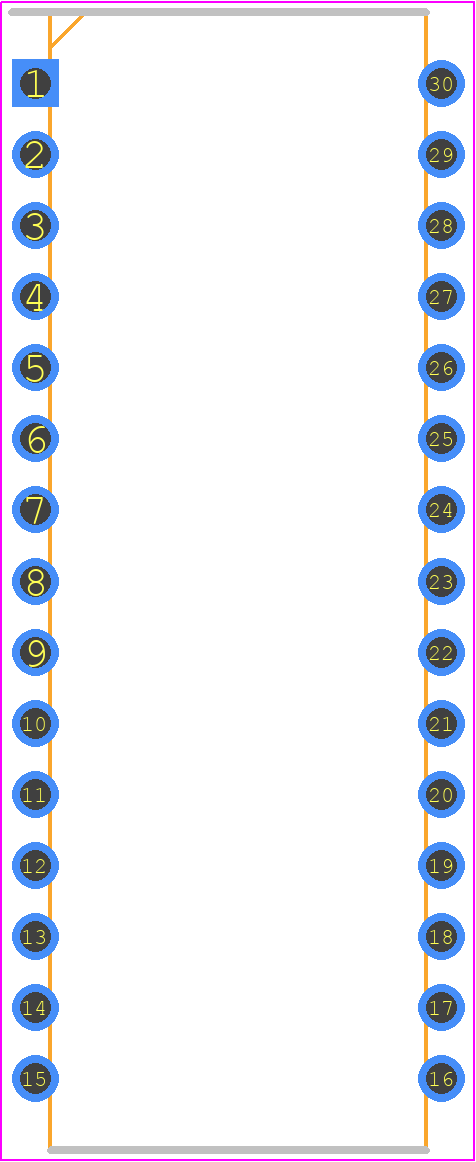

PCB Footprints
TDA7317 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SDIP30
click to zoom
3D Models
TDA7317 - STMicroelectronics - 3D model - Dual-In-Line Packages - SDIP30
click to zoom

TDA7317 Details

  • Manufacturer Part Number:

    TDA7317

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.400 INCH, SDIP-30

  • Pin Count:

    30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Channel Separation:

    100 dB

  • Consumer IC Type:

    EQUALIZER CIRCUIT

  • Harmonic Distortion:

    0.01%

  • JESD-30 Code:

    R-PDIP-T30

  • Length:

    27.94 mm

  • Number of Bands:

    5

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SDIP

  • Package Equivalence Code:

    SDIP30,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.778 mm

  • Terminal Position:

    DUAL

  • Width:

    10.16 mm

TDA7317 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the audio signal. This ensures that the internal voltage regulators are stabilized before the audio signal is applied.
  • The TDA7317 can be configured for different audio applications by adjusting the values of the external resistors and capacitors. The datasheet provides a table with recommended values for different applications, such as audio amplifiers, tone controls, and filters.
  • The maximum power dissipation of the TDA7317 is 1.4W. This should be taken into account when designing the PCB layout and thermal management to ensure reliable operation.
  • Yes, the TDA7317 can be used in a stereo audio application by using two devices, one for each channel. The datasheet provides an example of a stereo audio amplifier circuit using two TDA7317 devices.
  • To reduce noise and hum in the TDA7317 audio circuit, it is recommended to use a well-regulated power supply, decouple the power supply lines with capacitors, and use a ground plane on the PCB to reduce electromagnetic interference (EMI).
