- Part Number TDA7318
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

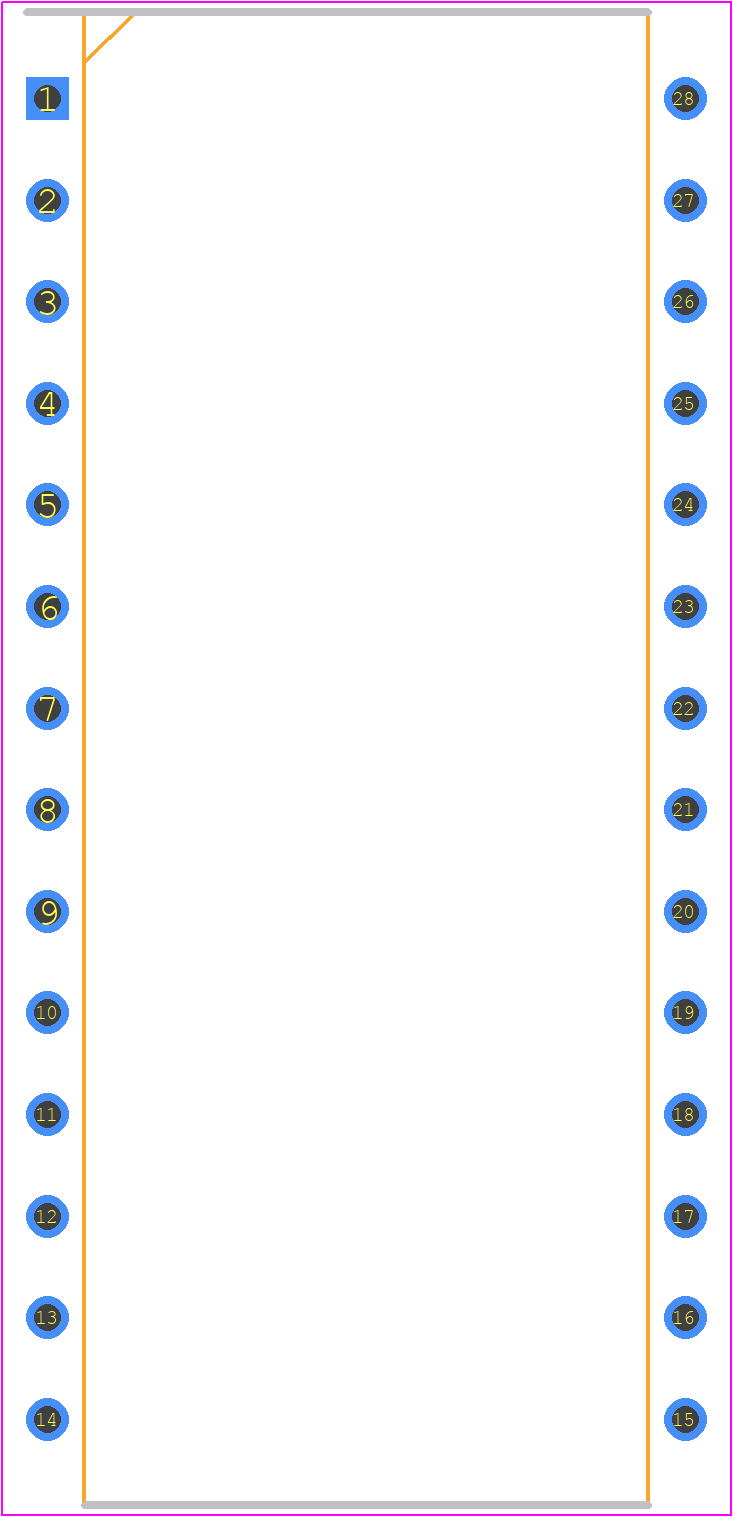

- Footprint Name Dual-In-Line Packages - DIP28_STM
- Released Date Sep 6, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7318 Details
-
Manufacturer Part Number:
TDA7318
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-28
-
Pin Count:
28
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Channel Separation:
103 dB
TDA7318 Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the audio signal. This ensures that the internal voltage regulators are stabilized before the audio signal is applied.
-
The TDA7318 can be configured for different audio applications by adjusting the values of the external resistors and capacitors. The datasheet provides a table with recommended values for different applications, such as audio amplifiers, tone controls, and filters.
-
The maximum power dissipation of the TDA7318 is 1.4W. This should be taken into account when designing the PCB layout and thermal management to ensure reliable operation.
-
Yes, the TDA7318 can be used with a single power supply. However, it is recommended to use a dual power supply (±VCC) for optimal performance and to minimize distortion.
-
To reduce noise and hum, ensure that the power supply lines are well-filtered, use a low-noise voltage regulator, and keep the audio signal lines away from the power supply lines. Additionally, use a ground plane and decouple the power supply pins with capacitors.
Trust Checks
Community Provided
System Verified
Community Approved
TDA7318 Overview

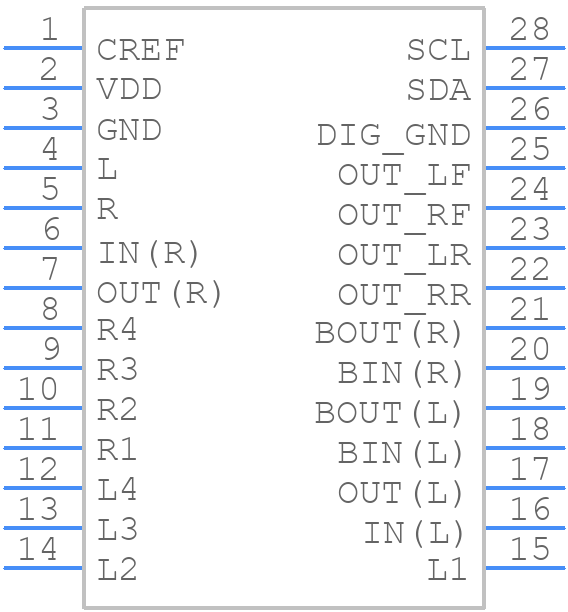

Use the download button to access the TDA7318 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA73,
or try a keyword search, such as Audio Control ICs
