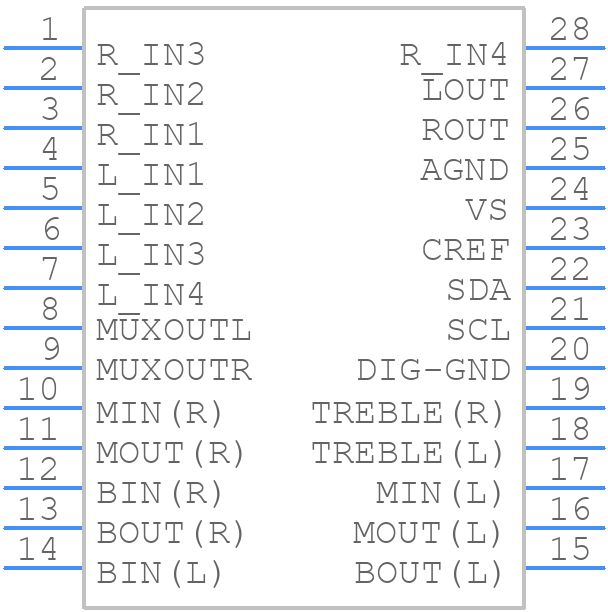

TDA7439B - STMicroelectronics

TDA7439B Details

• Manufacturer Part Number:

  TDA7439B

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-28

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Channel Separation:

  100 dB

• Consumer IC Type:

  TONE CONTROL CIRCUIT

• Harmonic Distortion:

  0.01%

• JESD-30 Code:

  R-PDIP-T28

• JESD-609 Code:

  e3

• Length:

  36.83 mm

• Number of Bands:

  3

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -10 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP28,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  10 mA

• Supply Voltage-Max (Vsup):

  10.2 V

• Supply Voltage-Min (Vsup):

  6 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
