TDA7439DS - STMicroelectronics

Description: THREE BANDS DIGITALLY CONTROLLED AUDIO PROCESSOR SOIC-28

Download TDA7439DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

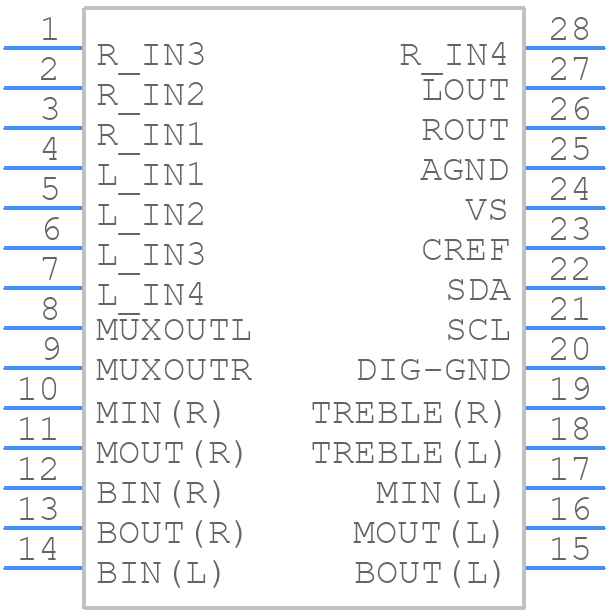

Symbol
TDA7439DS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7439DS - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO_28
click to zoom
3D Models
TDA7439DS - STMicroelectronics - 3D model - Small Outline Packages - SO_28
click to zoom

TDA7439DS Details

  • Manufacturer Part Number:

    TDA7439DS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Channel Separation:

    100 dB

  • Consumer IC Type:

    TONE CONTROL CIRCUIT

  • Harmonic Distortion:

    0.01%

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    10.2 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TDA7439DS Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The choice of external components such as resistors, capacitors, and inductors depends on the specific application and requirements. STMicroelectronics provides a component selection guide in the application note AN2863, which includes recommendations for component values and types.
  • The TDA7439DS is rated for operation from -40°C to 105°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It's recommended to consult the datasheet and application notes for more information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2863, which includes common issues, symptoms, and solutions. Additionally, the datasheet and other application notes provide guidance on debugging and troubleshooting techniques.
  • The TDA7439DS is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still necessary to ensure compliance. STMicroelectronics provides guidance on EMI and EMC considerations in the application note AN2863 and other documentation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7439DS Overview

Use the download button to access the TDA7439DS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74, or try a keyword search, such as Audio Control ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
