- Part Number TDA7448
- Manufacturer STMicroelectronics
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP-20A
- Released Date Sep 4, 2023
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7448 Details
-
Manufacturer Part Number:
TDA7448
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SO-20
-
Pin Count:
20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA7448 Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the TDA7448 is 1.4 W, but it can be increased to 2.1 W if the device is mounted on a PCB with a thermal pad.
-
To ensure proper biasing, the TDA7448 requires a stable voltage supply, and the input voltage should be decoupled with a 10 μF capacitor. Additionally, the output stage should be biased with a 1 kΩ resistor and a 10 μF capacitor.
-
To minimize EMI, it is recommended to keep the input and output traces as short as possible, and to use a ground plane to shield the device. Additionally, the power supply traces should be kept away from the input and output traces.
-
Yes, the TDA7448 can be used in a bridged amplifier configuration, but it requires a specific layout and component selection to ensure proper operation. A detailed application note is available from STMicroelectronics for guidance.
-
The thermal resistance of the TDA7448 is 35°C/W for the junction-to-ambient thermal resistance (RθJA) and 10°C/W for the junction-to-case thermal resistance (RθJC).
Trust Checks
Community Provided
System Verified
Community Approved
TDA7448 Overview

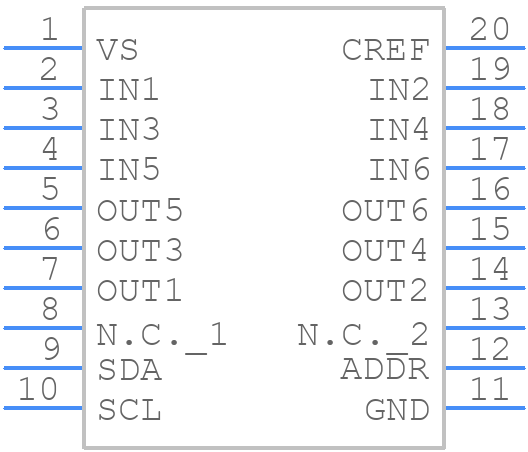

Use the download button to access the TDA7448 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74,
or try a keyword search, such as Audio Control ICs
