TDA7719 - STMicroelectronics

Description: Audio DSPs 3 Band Car Audio Processor

Download TDA7719 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

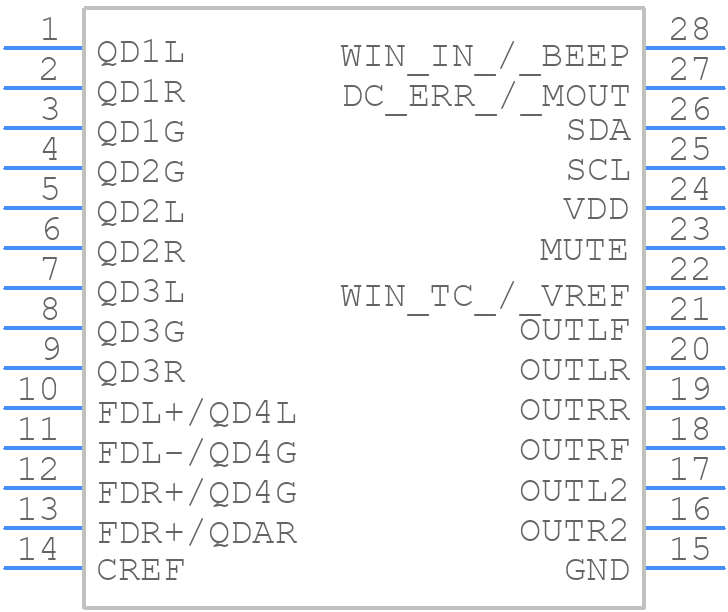

TDA7719 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7719 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP28
click to zoom
3D Models
TDA7719 - STMicroelectronics - 3D model - Small Outline Packages - TSSOP28
click to zoom

TDA7719 Details

  • Manufacturer Part Number:

    TDA7719

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Channel Separation:

    90 dB

  • Consumer IC Type:

    TONE CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    7.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

TDA7719 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7719 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the decoupling capacitors close to the IC. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the TDA7719 for low power consumption, use the lowest possible supply voltage, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, optimize the external component values and use a low-power mode for the audio codec.
  • The recommended values for the external components depend on the specific application and requirements. However, as a general guideline, use 1% tolerance resistors, 10uF capacitors for the power supply, and 100nF capacitors for the analog and digital supplies.
  • To troubleshoot issues with the TDA7719, start by checking the power supply voltage, then verify the clock signal and the reset signal. Use an oscilloscope to check the analog and digital signals, and consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the TDA7719 is AEC-Q100 qualified and can be used in automotive applications. However, ensure that the device is properly qualified and validated for the specific application, and follow the recommended guidelines for automotive designs.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7719 Overview

Use the download button to access the TDA7719 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA77, or try a keyword search, such as Audio Control ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
