- Part Number TDA7721
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TSSOP-28_2022
- Released Date Jul 29, 2023
- Last Modified Date Jul 29, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7721 Details
-
Manufacturer Part Number:
TDA7721
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
TSSOP-28
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
3
-
Channel Separation:
90 dB
-
Consumer IC Type:
TONE CONTROL CIRCUIT
TDA7721 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
-
To optimize the TDA7721 for low power consumption, ensure that the device is operated at the lowest possible clock frequency, disable any unused features, and use the power-down mode when not in use. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
-
The maximum allowed capacitance for the analog input pins is 10nF. Exceeding this value may affect the device's performance and stability.
-
To ensure EMC with the TDA7721, follow proper PCB design guidelines, use a shielded enclosure, and ensure that the device is properly grounded. Additionally, consider using electromagnetic interference (EMI) filters and shielding on the input and output lines.
-
The recommended layout and routing for the TDA7721 involves keeping the analog and digital circuits separate, using a star-grounding configuration, and minimizing the length of the analog input traces. Additionally, ensure that the power supply lines are decoupled and filtered.
Trust Checks
Community Provided
System Verified
Community Approved
TDA7721 Overview

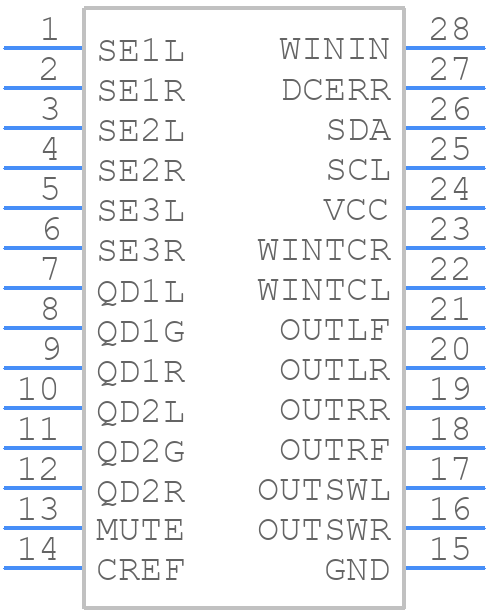

Use the download button to access the TDA7721 schematic symbol, PCB footprint, and 3D model.
