TDA8035HN/C1,151 - NXP

Description: Smart Card Interface ICs SMART CARD INTERFACE Voltage - Supply 1.8V, 3V, 5V,power supply voltage 2.7 3.3 5.5 V

Download TDA8035HN/C1,151 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

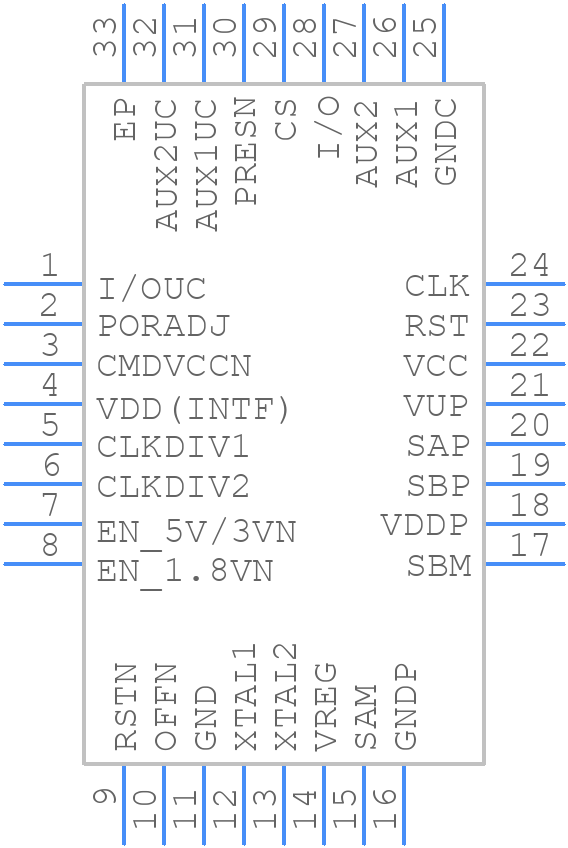

TDA8035HN/C1,151 - NXP - PCB symbol
click to zoom
PCB Footprints
TDA8035HN/C1,151 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT617-7
click to zoom
3D Models
TDA8035HN/C1,151 - NXP - 3D model - Quad Flat No-Lead - SOT617-7
click to zoom

TDA8035HN/C1,151 Details

  • Manufacturer Part Number:

    TDA8035HN/C1,151

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT617-7

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TDA8035HN/C1,151 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA8035HN/C1,151 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, ensure that the input and output tracks are well-separated to minimize crosstalk.
  • To ensure EMC compliance, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Also, ensure that the PCB layout is optimized for minimal radiation and susceptibility.
  • The recommended input voltage range for the TDA8035HN/C1,151 is 5.5 V to 40 V, with a typical operating voltage of 12 V or 24 V. However, it's essential to check the specific application requirements and ensure the device is operated within the recommended voltage range.
  • To troubleshoot issues with the TDA8035HN/C1,151, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly connected and configured. Use an oscilloscope to analyze the output waveform and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The TDA8035HN/C1,151 is rated for operation up to 125°C (junction temperature). However, it's essential to consider the thermal management and ensure that the device is properly cooled to prevent overheating. Consult the datasheet and thermal management guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA8035HN/C1,151 Overview

Use the download button to access the TDA8035HN/C1,151 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA80, or try a keyword search, such as Other Interface ICs
