TDA8552TS/N1 - NXP

Description: Amplifier IC 2-Channel (Stereo) Class AB 20-SSOP

Download TDA8552TS/N1 Model

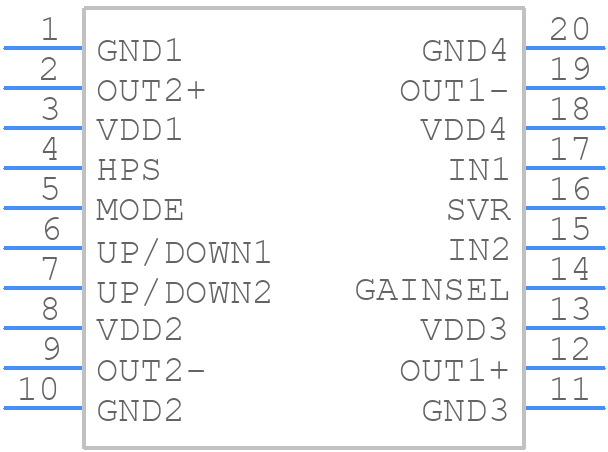

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDA8552TS/N1 - NXP PCB footprint - Other - Other - SOT266-1_2022
click to zoom

TDA8552TS/N1 Details

  • Manufacturer Part Number:

    TDA8552TS/N1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    LSSOP,

  • Pin Count:

    20

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Channel Separation:

    55 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    0.1%

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

TDA8552TS/N1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA8552TS/N1 should ensure that the analog and digital grounds are separated, and the analog ground should be connected to the digital ground at a single point. Additionally, the power supply lines should be decoupled with capacitors, and the input and output tracks should be kept as short as possible to minimize noise and interference.
  • To ensure the TDA8552TS/N1 operates within its recommended operating conditions, the supply voltage should be kept within the range of 2.7V to 5.5V, and the junction temperature should be kept below 150°C. Additionally, the device should be operated within its recommended frequency range, and the input signals should be within the specified voltage range.
  • The recommended method for powering up and powering down the TDA8552TS/N1 is to use a slow ramp-up and ramp-down of the supply voltage to prevent damage to the device. The power-up sequence should be such that the analog supply voltage is applied before the digital supply voltage, and the power-down sequence should be the reverse.
  • To troubleshoot issues with the TDA8552TS/N1, start by checking the power supply voltage and ensuring it is within the recommended range. Then, check the input and output signals to ensure they are within the specified voltage range. If the issue persists, check the PCB layout for any errors or noise coupling, and verify that the device is operated within its recommended frequency range.
  • The TDA8552TS/N1 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be mounted on a PCB with a good thermal conductivity, and the ambient temperature should be kept below 85°C to prevent overheating.
