TDB6HK124N16RR - Infineon

Description: Discrete Semiconductor Modules 1600V 70A HF-CNTL

Download TDB6HK124N16RR Model

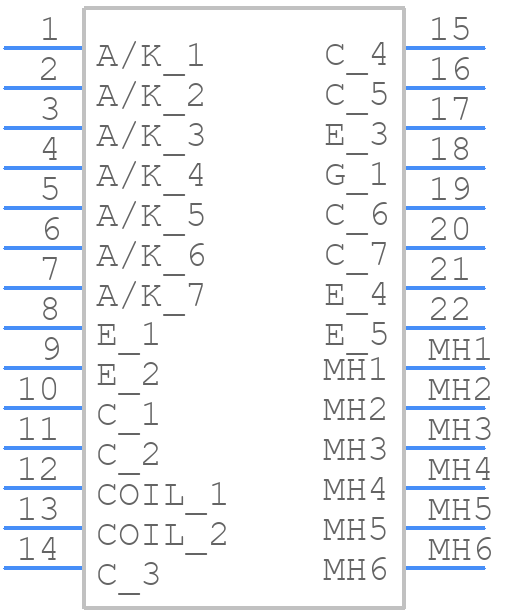

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

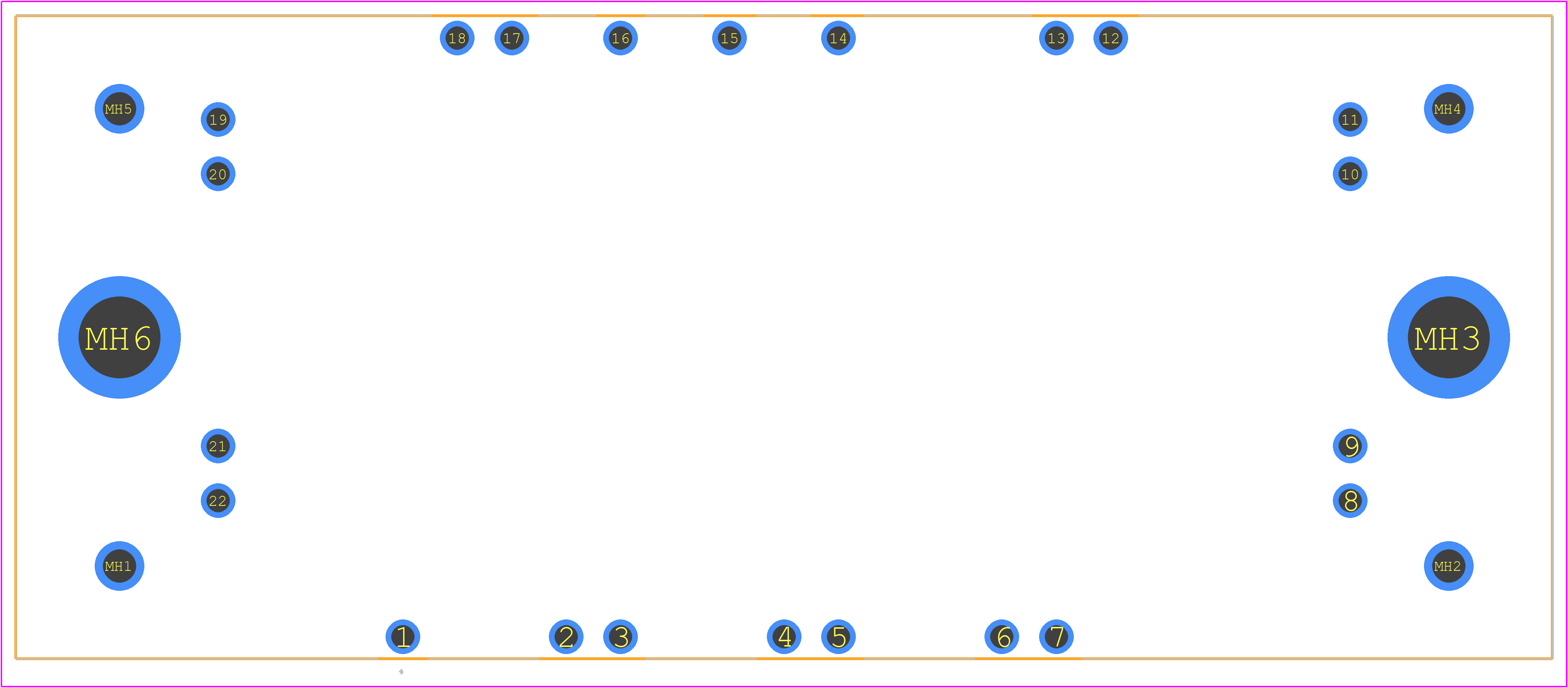

TDB6HK124N16RR - Infineon PCB footprint - Other - Other - TDB6HK124N16RR-4
click to zoom
3D Models
TDB6HK124N16RR - Infineon  - 3D model - Other - TDB6HK124N16RR-4
click to zoom

TDB6HK124N16RR Details

  • Manufacturer Part Number:

    TDB6HK124N16RR

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.07

  • Configuration:

    3 PHASE BRIDGE, HALF-CONTROLLED WITH BUILT-IN IGBT

  • DC Gate Trigger Current-Max:

    150 mA

  • DC Gate Trigger Voltage-Max:

    2.5 V

  • Holding Current-Max:

    200 mA

  • JESD-30 Code:

    R-XUFM-P22

  • Leakage Current-Max:

    10 mA

  • Non-Repetitive Pk On-state Cur:

    650 A

  • Number of Elements:

    3

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    70 A

  • Repetitive Peak Reverse Voltage:

    1600 V

  • Surface Mount:

    NO

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Device Type:

    SCR

TDB6HK124N16RR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TDB6HK124N16RR is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 1.5 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for the TDB6HK124N16RR includes a 2-layer or 4-layer board with a solid ground plane, and using thermal vias to connect the device to the heat sink.
  • Overvoltage protection can be achieved using a TVS diode or a zener diode, while overcurrent protection can be achieved using a fuse or a current sense resistor.
  • The recommended gate drive voltage for the TDB6HK124N16RR is 15V, with a maximum gate-source voltage of 20V.
