TDE1767ADP - STMicroelectronics

Description: Interface circuit (relay and lamp driver) DIP-8

Download TDE1767ADP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

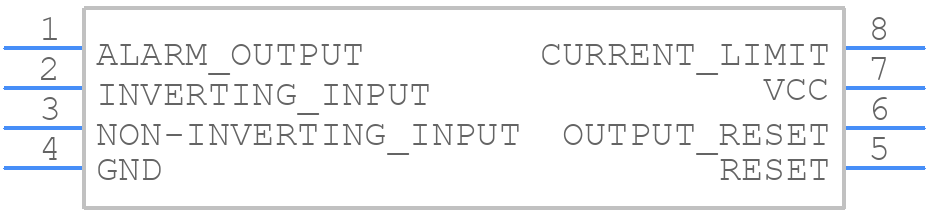

TDE1767ADP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDE1767ADP - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
TDE1767ADP - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP8
click to zoom

TDE1767ADP Details

  • Manufacturer Part Number:

    TDE1767ADP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; THERMAL

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER
