TDE3247FPT - STMicroelectronics

Description: Interface circuit (relay and lamp driver)

Download TDE3247FPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

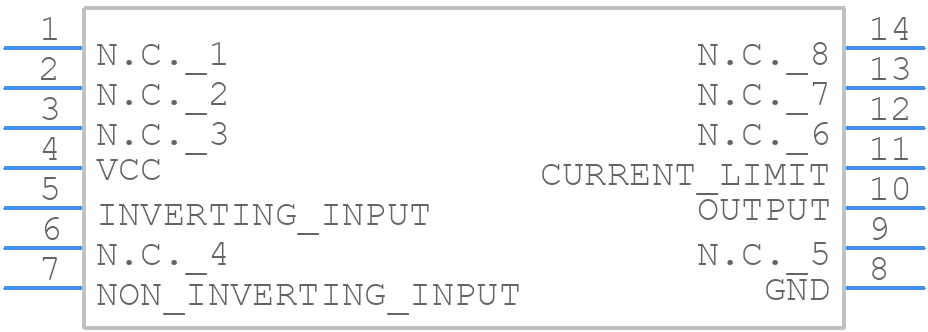

TDE3247FPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDE3247FPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-14_2022
click to zoom
3D Models
TDE3247FPT - STMicroelectronics - 3D model - Small Outline Packages - SO-14_2022
click to zoom

TDE3247FPT Details

  • Manufacturer Part Number:

    TDE3247FPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Built-in Protections:

    THERMAL; SHORTCIRCUIT

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.25 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TDE3247FPT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Although the datasheet specifies the recommended operating conditions, it's essential to note that the maximum allowed voltage on the input pins is typically 5.5V, which is higher than the recommended VCC of 3.3V or 5V. However, it's crucial to ensure that the input voltage does not exceed the maximum rating to prevent damage to the device.
  • To prevent electrostatic discharge (ESD) damage, it's essential to follow proper handling and assembly procedures. Use ESD-protective packaging, wrist straps, and mats, and ensure that all equipment is properly grounded. Avoid touching the device's pins or exposing them to static-prone environments.
  • STMicroelectronics recommends soldering the TDE3247FPT using a reflow soldering process with a peak temperature of 260°C (500°F) for a maximum of 30 seconds. Hand soldering is not recommended due to the device's small size and high pin count.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDE3247FPT Overview

Use the download button to access the TDE3247FPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDE32, or try a keyword search, such as Peripheral Drivers
