TDF1778SP - STMicroelectronics

Description: Dual source driver,TDF1778SP 2A 8-32V

Download TDF1778SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

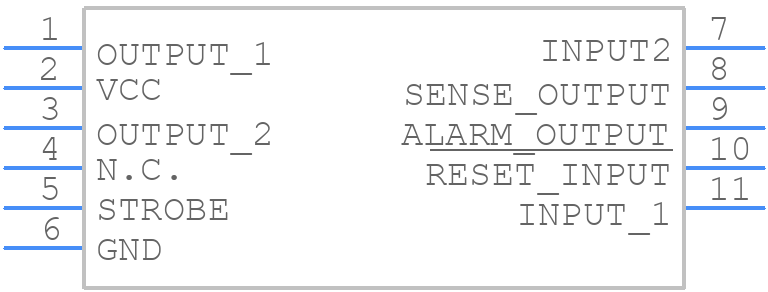

Symbol
TDF1778SP - STMicroelectronics - PCB symbol
click to zoom

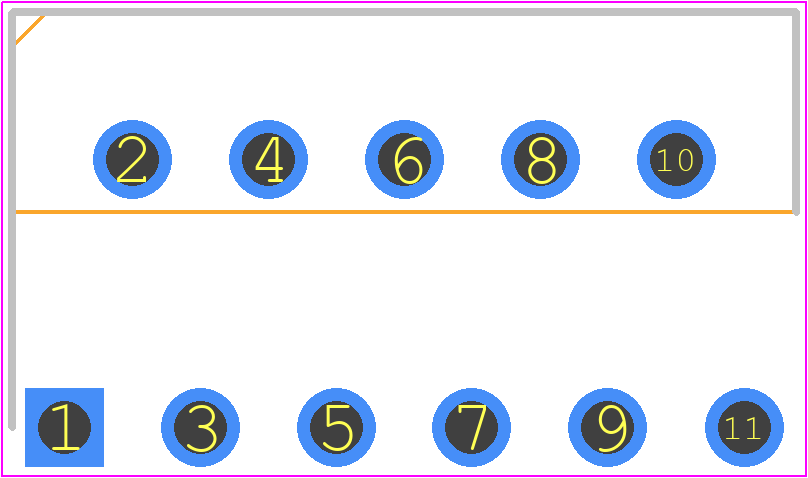

PCB Footprints
TDF1778SP - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt11 V_3
click to zoom
3D Models
TDF1778SP - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt11 V_3
click to zoom

TDF1778SP Details

  • Manufacturer Part Number:

    TDF1778SP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PZFM-T11

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDF1778SP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TDF1778SP has an internal overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN2863 provides a detailed example of how to implement overcurrent protection.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, STMicroelectronics recommends derating the device's performance at temperatures above 85°C to ensure reliable operation and prevent thermal shutdown.
  • The TDF1778SP is designed for automotive applications with a maximum input voltage of 42V. While it can tolerate voltage transients up to 50V, it's not recommended for high-voltage applications above 50V. For high-voltage applications, consider using a different device or adding external voltage protection circuitry.
  • STMicroelectronics provides guidelines for EMC in the application note AN2863, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic radiation and ensure compliance with regulatory standards.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDF1778SP Overview

Use the download button to access the TDF1778SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDF17, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
