TDH-8070-1102P - LEACH

Description: Off-Delay Relay, DPDT, Momentary, 0.15A (Coil), 30VDC (Coil), 4500mW (Coil), 10A (Contact), 10s, DC Input, DC Output, Socket Mount

Download TDH-8070-1102P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

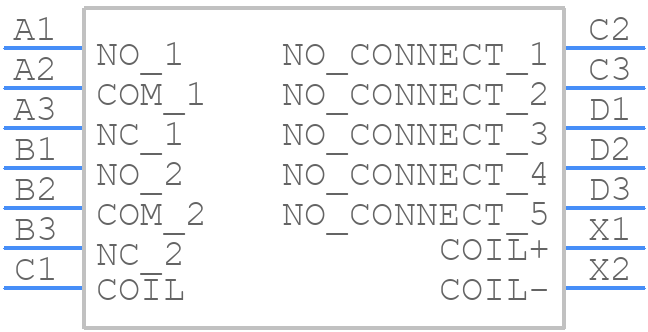

TDH-8070-1102P - LEACH - PCB symbol
click to zoom
PCB Footprints

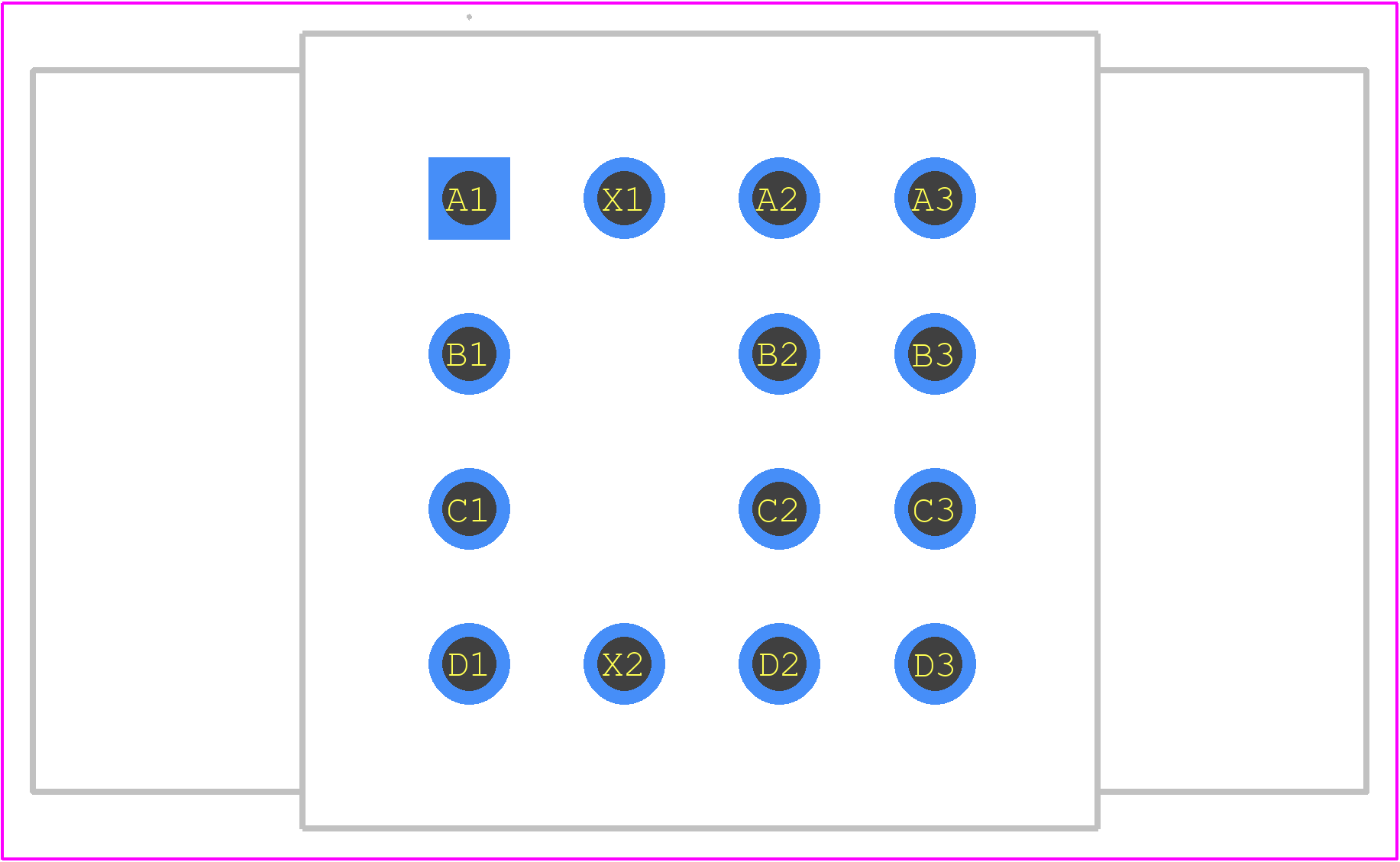

TDH-8070-1102P - LEACH PCB footprint - Other - Other - TDH-8070-1102P-1
click to zoom

TDH-8070-1102P Details

  • Manufacturer Part Number:

    TDH-8070-1102P

  • Manufacturer:

    Leach International Corporation

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDH-8070-1102P Overview

Use the download button to access the TDH-8070-1102P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TDH-8, or try a keyword search, such as Time Delay Relays
