TDM3885XUMA1 - Infineon

Description: Switching Voltage Regulators IFX POL

Download TDM3885XUMA1 Model

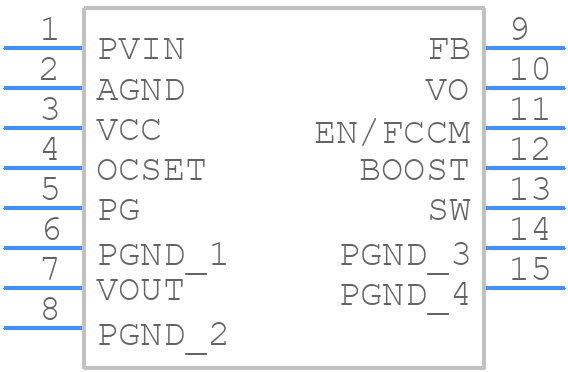

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDM3885XUMA1 - Infineon PCB footprint - Other - Other - PG-LGA-15
click to zoom
3D Models
TDM3885XUMA1 - Infineon  - 3D model - Other - PG-LGA-15
click to zoom

TDM3885XUMA1 Details

  • Manufacturer Part Number:

    TDM3885XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBCC-N15

  • Length:

    3.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BCC

  • Package Equivalence Code:

    SOLCC13,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    2.325 mm

  • Supply Current-Max (Isup):

    20 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.1 mm

TDM3885XUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and ensure proper grounding and decoupling. Follow Infineon's EMC guidelines for optimal design.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, clock, and data lines for errors. Consult Infineon's application notes and technical support for guidance.
  • The device is rated for operation up to 125°C. However, thermal management is crucial to ensure reliability. Use a heat sink or thermal pad to maintain a safe junction temperature.
