TDP04H0SBD1R - LITTELFUSE

Description: DIP / ROTARY DIP TDP Series Ultra-miniature Surface Mount Half-pitch Side-Actuated DIP Switches

Download TDP04H0SBD1R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TDP04H0SBD1R model

Email notifications will be applied after download.

Send part feedback

Symbol

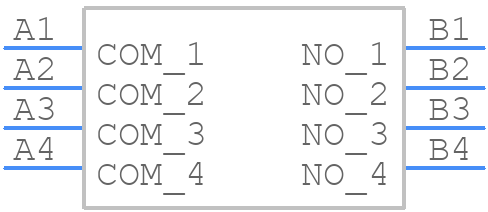

TDP04H0SBD1R - LITTELFUSE - PCB symbol

PCB Footprints

TDP04H0SBD1R - LITTELFUSE PCB footprint - Other - Other - TDP04H0SBD1R-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDP04H0SBD1R
Part Number TDP04H0SBD1R
Manufacturer LITTELFUSE
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - TDP04H0SBD1R-1
Released Date Nov 16, 2020
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

TDP04H0SBD1R Details

Manufacturer Part Number:
TDP04H0SBD1R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
YTEOL:
7

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TDP04H0SBD1R Overview

Use the download button to access the TDP04H0SBD1R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TDP04, or try a keyword search, such as DIP Switches
