TDR3-2411 - Traco Power

TDR3-2411 Details

• Manufacturer Part Number:

  TDR3-2411

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

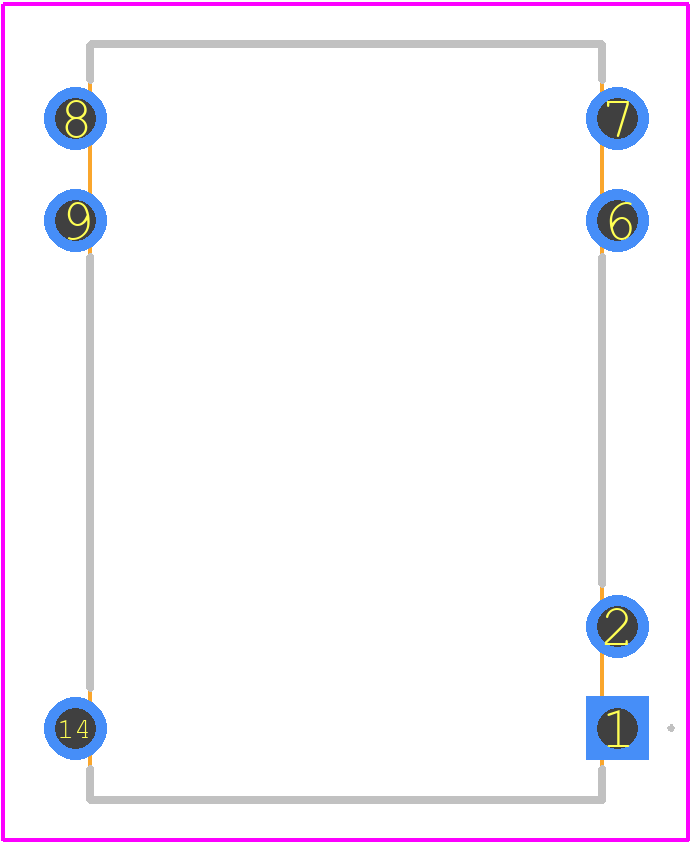

• Package Description:

  DIP-14/7

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  Traco Power

• YTEOL:

  6

• Additional Feature:

  SEATED HGT CALCULATED

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Efficiency (Main Output):

  81%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDMA-T7

• JESD-609 Code:

  e4

• Length:

  18.9 mm

• Load Regulation-Max:

  1%

• Moisture Sensitivity Level:

  2A

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.6 A

• Output Voltage-Max:

  5.05 V

• Output Voltage-Min:

  4.95 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  265

• Seated Height-Max:

  9.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  12.8 mm
