- Part Number TEA1611T/N1,518
- Manufacturer NXP
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO20PIN
- Released Date Mar 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TEA1611T/N1,518 Details
-
Manufacturer Part Number:
TEA1611T/N1,518
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOP
-
Package Description:
7.50 MM, PLASTIC, MS-013, SOT163-1, SOP-20
-
Pin Count:
20
-
Manufacturer Package Code:
SOT163-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
NXP Semiconductors
TEA1611T/N1,518 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TEA1611T involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output stages to minimize noise coupling.
-
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which involves applying the input voltage (VIN) before the enable signal (EN). Also, ensure that the input voltage is within the recommended range (4.5V to 18V) and that the enable signal is high during normal operation.
-
The maximum output current capability of the TEA1611T is 1.5A, but this can be limited by the thermal performance of the device and the PCB. It's recommended to ensure good thermal design and heat sinking to achieve the maximum output current.
-
To protect the TEA1611T from overvoltage and undervoltage conditions, it's recommended to use external voltage protection devices such as TVS diodes or voltage regulators. Additionally, ensure that the input voltage is within the recommended range and that the device is not exposed to voltage transients or spikes.
-
The recommended operating temperature range for the TEA1611T is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure good thermal design and heat sinking to maintain the device within the recommended operating temperature range.
Trust Checks
Community Provided
System Verified
Community Approved
TEA1611T/N1,518 Overview

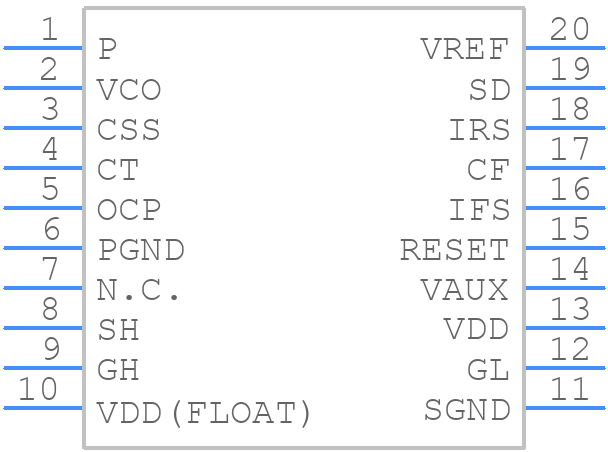

Use the download button to access the TEA1611T/N1,518 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA16,
or try a keyword search, such as Switching Regulator or Controllers
