TEA1721FT/N1,118 footprint, schematic symbol and 3D model by NXP

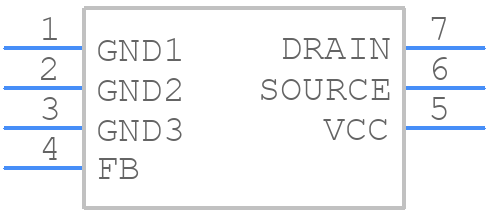

Symbol

click to zoom

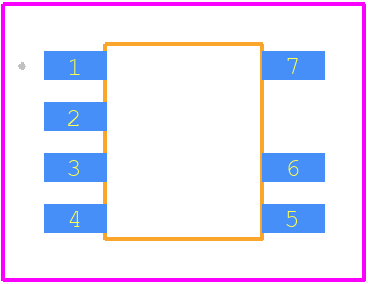

PCB Footprints

TEA1721FT/N1,118 - NXP PCB footprint - Other - Other - SOT1175-1 SO7

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TEA1721FT/N1,118
Part Number TEA1721FT/N1,118
Manufacturer NXP
Pin Count 7
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT1175-1 SO7
Released Date Feb 4, 2026
Last Modified Date Feb 4, 2026 2:24 PM UTC
Pinout / Pin List Click Here (Member Only)

TEA1721FT/N1,118 Details

Manufacturer Part Number:
TEA1721FT/N1,118
Source Url Status Check Date:
2013-06-14 00:00:00
Brand Name:
NXP Semiconductor
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOP
Package Description:
SOP-7
Pin Count:
7
Manufacturer Package Code:
SOT1175-1
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
21 Weeks
Manufacturer:
NXP Semiconductors
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT/VOLTAGE-MODE
Input Voltage-Nom:
20 V
JESD-30 Code:
R-PDSO-G7
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP7/8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
53 kHz
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

TEA1721FT/N1,118 Frequently Asked Questions (FAQs)

A good PCB layout is crucial for the TEA1721FT/N1,118. NXP recommends a 4-layer PCB with a solid ground plane, and to keep the input and output tracks as short as possible. Additionally, it's essential to follow the layout guidelines provided in the application note AN11535.
The TEA1721FT/N1,118 can generate significant heat during operation. To ensure proper cooling, NXP recommends a heat sink with a thermal resistance of ≤ 10 K/W. Additionally, ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer.
The recommended input capacitor value for the TEA1721FT/N1,118 is 10 μF to 22 μF, with an ESR of ≤ 100 mΩ. This ensures stable operation and minimizes voltage ripple.
The TEA1721FT/N1,118 output voltage can be configured using the FB (feedback) pin. Connect a resistive divider network between the output and the FB pin, and adjust the resistor values to achieve the desired output voltage.
The maximum input voltage for the TEA1721FT/N1,118 is 30 V. Exceeding this voltage can damage the device. Ensure the input voltage is within the recommended range of 8 V to 28 V for proper operation.
