TEA1993TS/1H - NXP

Description: Power Management Specialized - PMIC GreenChip synchronous rectifier controller

Download TEA1993TS/1H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

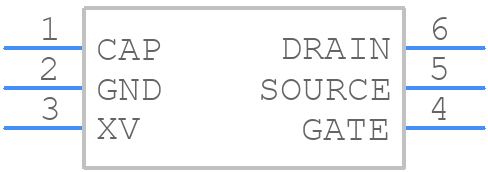

TEA1993TS/1H - NXP - PCB symbol
click to zoom
PCB Footprints
TEA1993TS/1H - NXP PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - (TSOP6); 6 lead
click to zoom
3D Models
TEA1993TS/1H - NXP - 3D model - SOT23 (6-Pin) - (TSOP6); 6 lead
click to zoom

TEA1993TS/1H Details

  • Manufacturer Part Number:

    TEA1993TS/1H

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TEA1993TS/1H Frequently Asked Questions (FAQs)

  • The maximum input voltage that the TEA1993TS/1H can handle is 40V, but it's recommended to keep it below 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value, as recommended in the datasheet.
  • The EN pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. You can use this pin to turn the device on and off, or to implement a power-saving mode.
  • The output voltage of the TEA1993TS/1H can be calculated using the formula: Vout = (R1 / R2) * (Vref), where R1 and R2 are the resistors connected to the FB (Feedback) pin, and Vref is the internal reference voltage (typically 1.25V).
  • The maximum output current that the TEA1993TS/1H can deliver is 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TEA1993TS/1H Overview

Use the download button to access the TEA1993TS/1H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA19, or try a keyword search, such as Switching Regulator or Controllers
