TEA1993TS/1X - NXP

Description: GreenChip synchronous rectifier controller

Download TEA1993TS/1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

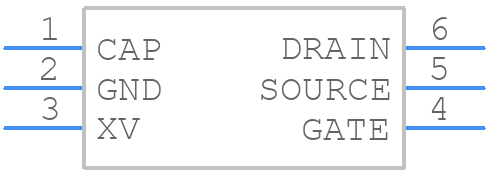

TEA1993TS/1X - NXP - PCB symbol
click to zoom
PCB Footprints
TEA1993TS/1X - NXP PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - (TSOP6); 6 lead
click to zoom
3D Models
TEA1993TS/1X - NXP - 3D model - SOT23 (6-Pin) - (TSOP6); 6 lead
click to zoom

TEA1993TS/1X Details

  • Manufacturer Part Number:

    TEA1993TS/1X

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP

  • Package Description:

    TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER
