- Part Number TEA6422D
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-28
- Released Date Oct 31, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TEA6422D Details
-
Manufacturer Part Number:
TEA6422D
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SO-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
AUDIO/VIDEO SWITCH
TEA6422D Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2433, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the application note AN2433, which includes formulas and guidelines for selecting the correct components.
-
The TEA6422D is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and thermal management. It's recommended to consult the datasheet and application notes for specific guidance on thermal management and derating.
-
The TEA6422D has a built-in overcurrent protection feature that can be enabled by connecting a sense resistor to the CS pin. The sense resistor value should be selected based on the maximum current rating of the device and the desired overcurrent threshold. Consult the datasheet and application notes for specific guidance on implementing overcurrent protection.
-
The recommended startup sequence for the TEA6422D involves applying the input voltage, followed by the enable signal, and then the clock signal. The specific startup sequence may vary depending on the application, so it's recommended to consult the datasheet and application notes for specific guidance.
Trust Checks
Community Provided
System Verified
Community Approved
TEA6422D Overview

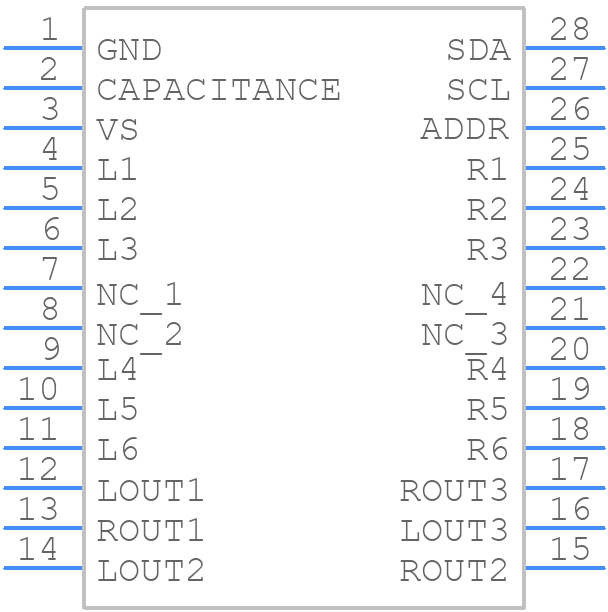

Use the download button to access the TEA6422D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA64,
or try a keyword search, such as Multiplexers or Switches
