TEF6902AH - NXP

TEF6902AH Details

• Manufacturer Part Number:

  TEF6902AH

• Source Url Status Check Date:

  2013-06-14 00:00:00

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

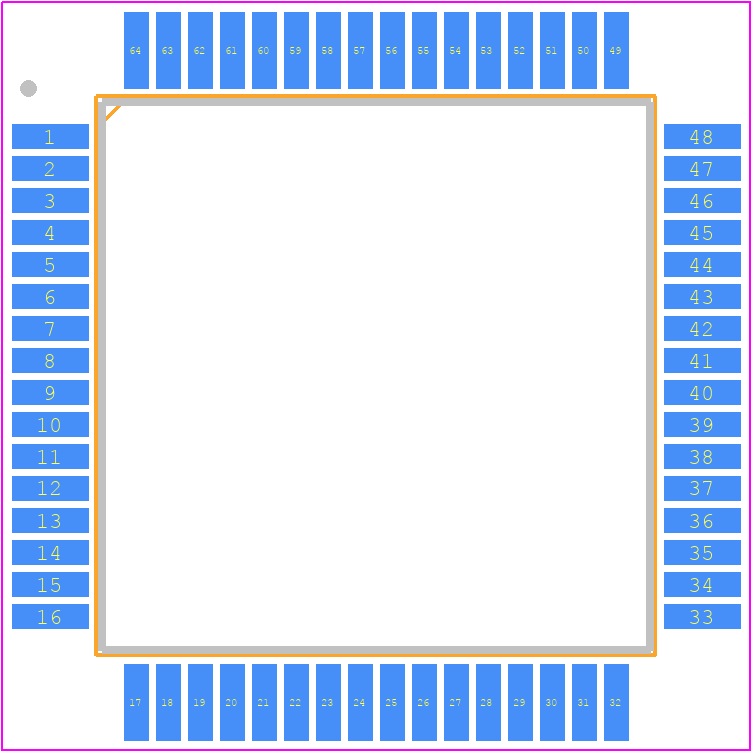

• Package Description:

  14 X 14 MM, 2.70 MM HEIGHT, PLASTIC, MS-022, SOT393-1, QFP-64

• Pin Count:

  64

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Consumer IC Type:

  AUDIO SINGLE CHIP RECEIVER

• Demodulation Type:

  AM/FM

• Harmonic Distortion:

  0.5%

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e3

• Length:

  14 mm

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Nom (AM):

  255 mV

• Output Voltage-Nom (FM):

  230 mV

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3 mm

• Signal to Noise Ratio-Nom (FM):

  60 dB

• Supply Voltage-Max (Vsup):

  9 V

• Supply Voltage-Min (Vsup):

  8 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
