Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the TEN 5-2422WI is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure the module is securely attached to the PCB. Additionally, the module's pins should be soldered securely to prevent damage from vibration.
The maximum capacitance on the output of the TEN 5-2422WI is not explicitly stated in the datasheet. However, as a general rule, Traco Power recommends limiting the output capacitance to 10-20 times the module's output capacitance (typically 10-20uF). Exceeding this limit may affect the module's stability and performance.
Yes, the TEN 5-2422WI can be used in a redundant configuration. However, it's essential to ensure that the modules are properly synchronized and that the output voltages are matched to prevent damage or instability. Traco Power recommends consulting with their application engineers for specific guidance on redundant configurations.
The MTBF of the TEN 5-2422WI is not explicitly stated in the datasheet. However, Traco Power provides an MTBF calculation tool on their website, which can be used to estimate the MTBF based on the module's operating conditions and environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TEN5-2422WI Overview

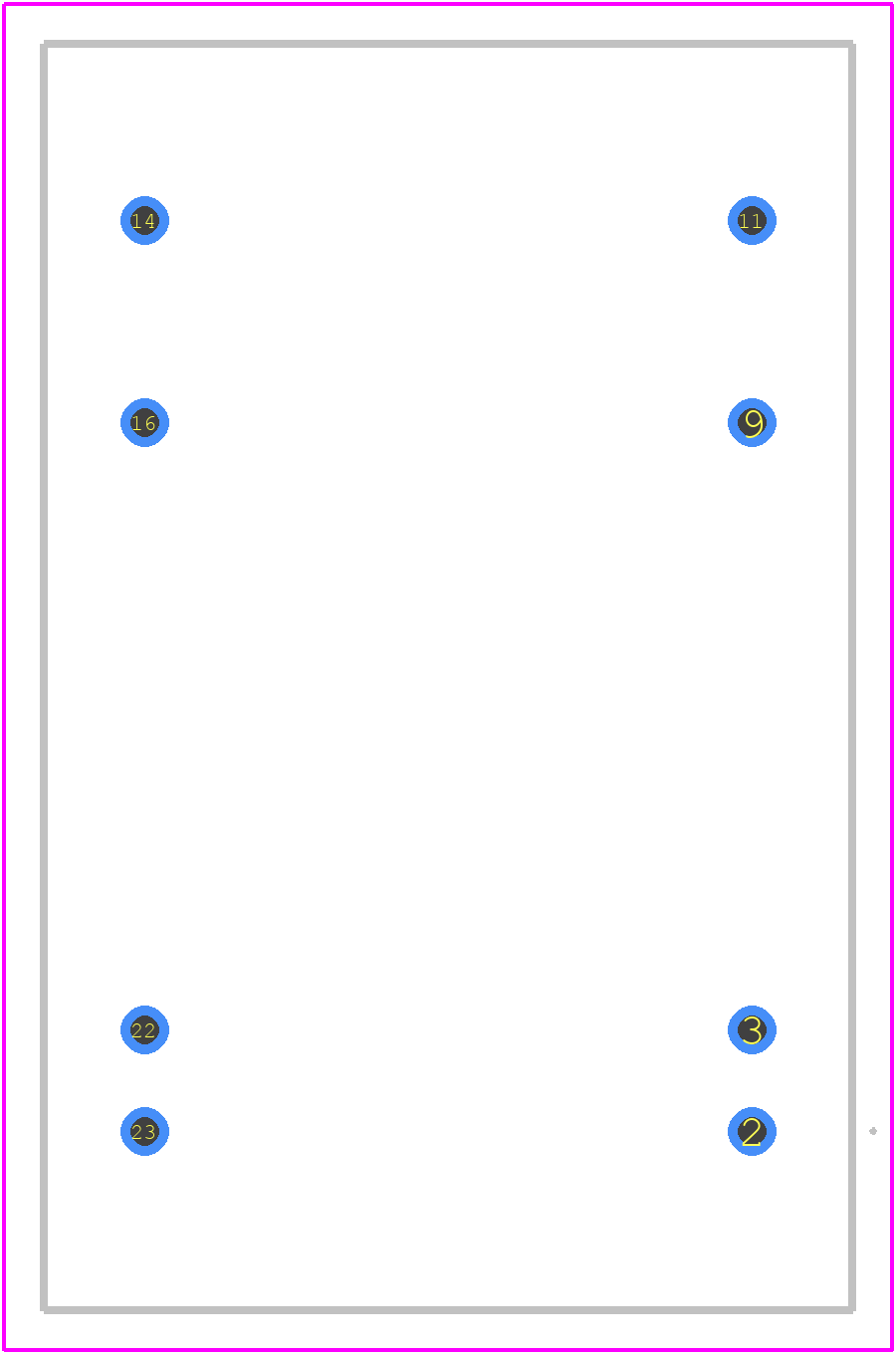

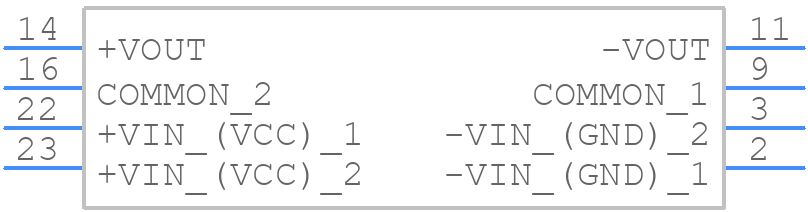

Use the download button to access the TEN5-2422WI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEN5-,
or try a keyword search, such as Other Signal Circuits
