TF-102-15 - XUNPU

Description: 1.6mm Gold Deck MicroSD card (TF card) 260℃ C5191 Clamshell SMD SD Card Connectors -25℃~+85℃ ROHS

Download TF-102-15 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TF-102-15 model

Email notifications will be applied after download.

Send part feedback

Symbol

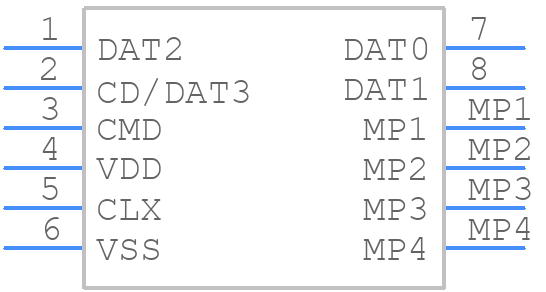

TF-102-15 - XUNPU - PCB symbol

PCB Footprints

TF-102-15 - XUNPU PCB footprint - Other - Other - TF-102-15-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for TF-102-15
Part Number TF-102-15
Manufacturer XUNPU
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - TF-102-15-2
Released Date Mar 29, 2023
Last Modified Date Mar 29, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

TF-102-15 Details

Manufacturer Part Number:
TF-102-15
Manufacturer:
Dongguan Xunpu Electronic Technology Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

TF-102-15 Overview

Use the download button to access the TF-102-15 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TF-10, or try a keyword search, such as Mains Filters
