The recommended torque for the screw terminals is 0.4 N·m to 0.6 N·m (3.5 in·lb to 5.3 in·lb).
Yes, the TF13BSA-18S-0.4SH(800) is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2000 Hz.
Yes, the TF13BSA-18S-0.4SH(800) has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
The maximum operating temperature range for the TF13BSA-18S-0.4SH(800) is -40°C to 105°C (-40°F to 221°F).
No, the TF13BSA-18S-0.4SH(800) is designed for wire sizes up to 0.4 mm² (AWG 26). Using a larger wire size may compromise the connector's performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TF13BSA-18S-0.4SH(800) Overview

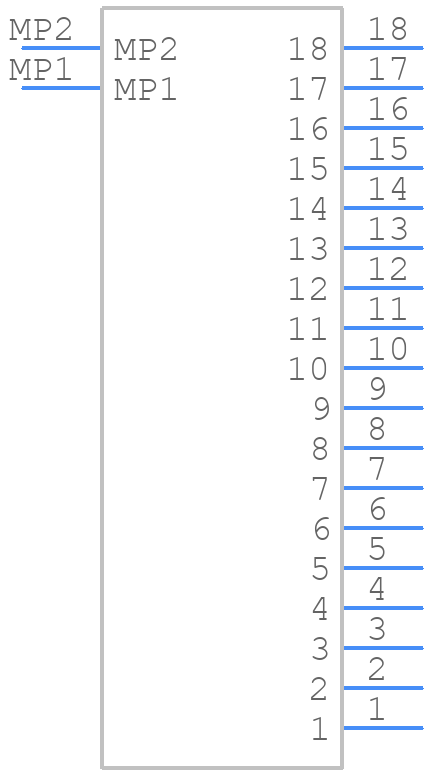

Use the download button to access the TF13BSA-18S-0.4SH(800) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TF13B,
or try a keyword search, such as Headers and Edge Type Connectors
