The recommended torque for the screw terminals is 0.5 Nm to 1.0 Nm, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the TF31-13S-0.5SH(800) is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
The TF31-13S-0.5SH(800) has a operating temperature range of -40°C to 105°C and is suitable for use in harsh environments. However, it's recommended to consult with Hirose Electric Co Ltd's application engineers for specific environmental requirements.
The TF31-13S-0.5SH(800) has a mating cycle life of 500 cycles, as specified in the datasheet.
It's not recommended to use a different wire gauge than specified in the datasheet, as it may affect the connector's performance and reliability. Consult with Hirose Electric Co Ltd's application engineers for specific wire gauge requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TF31-13S-0.5SH(800) Overview

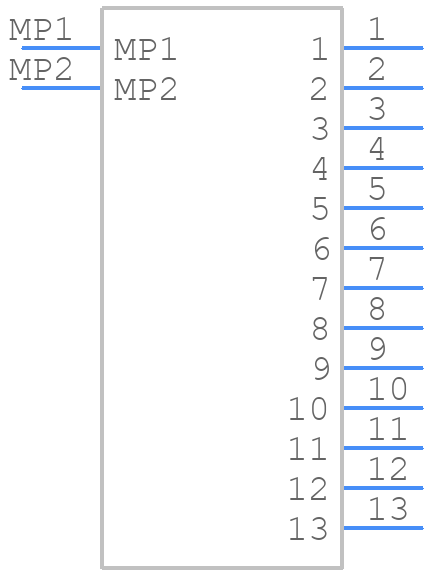

Use the download button to access the TF31-13S-0.5SH(800) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TF31-,
or try a keyword search, such as Headers and Edge Type Connectors
