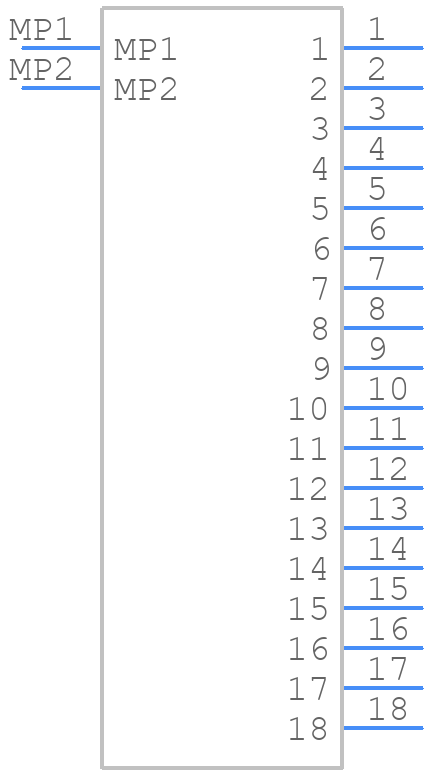

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TF31-18S-0.5SH(800)
- Part Number TF31-18S-0.5SH(800)
- Manufacturer Hirose
- Pin Count 20
- Part Category Connector
- Package Category Other
- Footprint Name Other - TF31-18S-0.5SH(800)-1
- Released Date Jun 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TF31-18S-0.5SH(800) Details
-
Manufacturer Part Number:
TF31-18S-0.5SH(800)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
FFC/FPC CONNECTOR
TF31-18S-0.5SH(800) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
-
Yes, the TF31-18S-0.5SH(800) is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and ratings.
-
The operating temperature range for the TF31-18S-0.5SH(800) is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
-
Yes, the TF31-18S-0.5SH(800) is compatible with lead-free soldering processes. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific soldering profile recommendations.
-
The mating cycle life of the TF31-18S-0.5SH(800) is 500 cycles minimum. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle life ratings and testing information.
Trust Checks
Community Provided
System Verified
Community Approved
TF31-18S-0.5SH(800) Overview
Use the download button to access the TF31-18S-0.5SH(800) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TF31-,
or try a keyword search, such as Headers and Edge Type Connectors
