TF31-32S-0.5SH(800) - Hirose

Description: FFC & FPC Connectors 32 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle, HEIGHT-2

Download TF31-32S-0.5SH(800) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

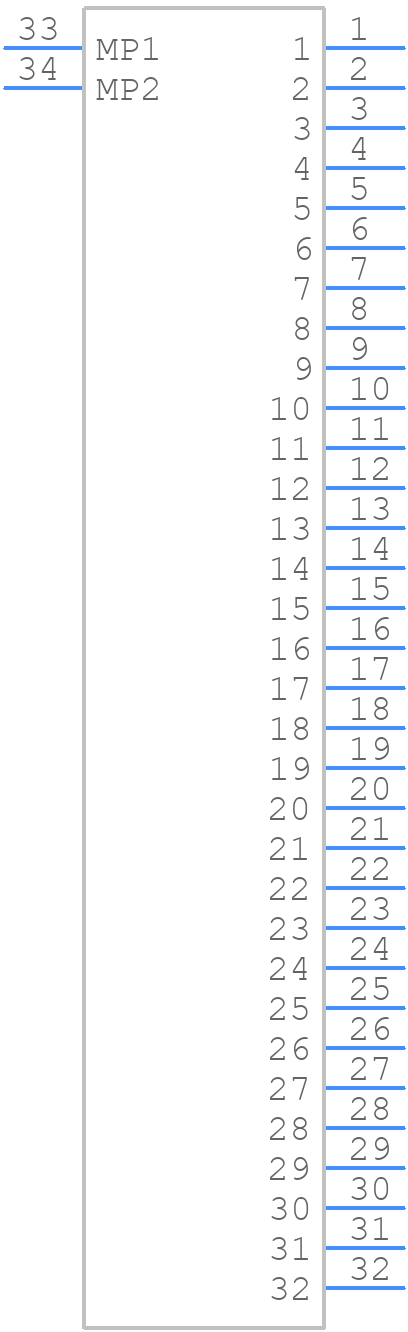

Symbol
TF31-32S-0.5SH(800) - Hirose - PCB symbol
click to zoom
PCB Footprints
TF31-32S-0.5SH(800) - Hirose PCB footprint - Other - Other - TF31-32S-0.5SH(800)-2
click to zoom
3D Models
TF31-32S-0.5SH(800) - Hirose - 3D model - Other - TF31-32S-0.5SH(800)-2
click to zoom

TF31-32S-0.5SH(800) Details

  • Manufacturer Part Number:

    TF31-32S-0.5SH(800)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    FFC/FPC CONNECTOR

TF31-32S-0.5SH(800) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m.
  • Yes, the TF31-32S-0.5SH(800) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the TF31-32S-0.5SH(800) is -40°C to 105°C.
  • Yes, the TF31-32S-0.5SH(800) is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The mating cycle rating for the TF31-32S-0.5SH(800) is 500 cycles.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TF31-32S-0.5SH(800) Overview

Use the download button to access the TF31-32S-0.5SH(800) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TF31-, or try a keyword search, such as Headers and Edge Type Connectors
