TF38-38S-0.5SV(830) - Hirose

Description: 38 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount

Download TF38-38S-0.5SV(830) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

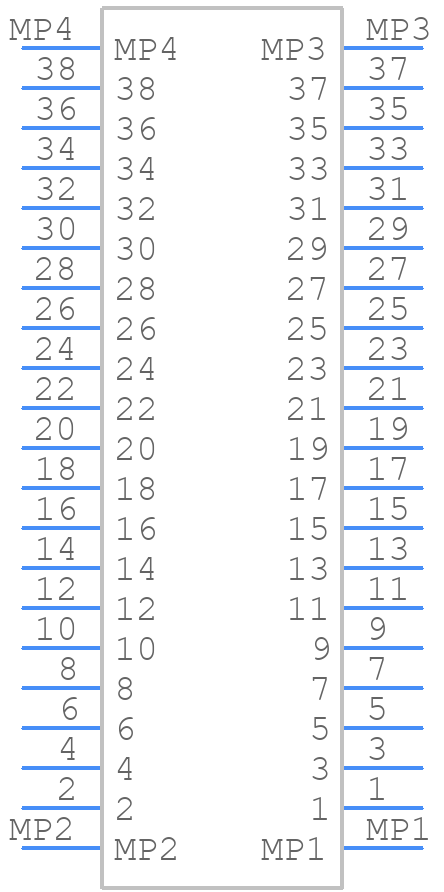

Symbol
TF38-38S-0.5SV(830) - Hirose - PCB symbol
click to zoom
PCB Footprints
TF38-38S-0.5SV(830) - Hirose PCB footprint - Other - Other - TF38-38S-0.5SV(830)-2
click to zoom
3D Models
TF38-38S-0.5SV(830) - Hirose - 3D model - Other - TF38-38S-0.5SV(830)-2
click to zoom

TF38-38S-0.5SV(830) Details

  • Manufacturer Part Number:

    TF38-38S-0.5SV(830)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    FFC/FPC CONNECTOR

TF38-38S-0.5SV(830) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for TF38-38S-0.5SV(830) connectors is 500 cycles.
  • Yes, TF38-38S-0.5SV(830) connectors are designed to withstand high-vibration environments and are suitable for use in applications with vibration levels up to 10G.
  • The operating temperature range for TF38-38S-0.5SV(830) connectors is -40°C to 105°C.
  • Yes, TF38-38S-0.5SV(830) connectors are compatible with lead-free soldering processes and can withstand the higher temperatures required for lead-free soldering.
  • The recommended torque value for TF38-38S-0.5SV(830) connectors is 0.5 N·m to 1.5 N·m.
