TF38-45S-0.5SV(830) footprint, schematic symbol and 3D model by Hirose

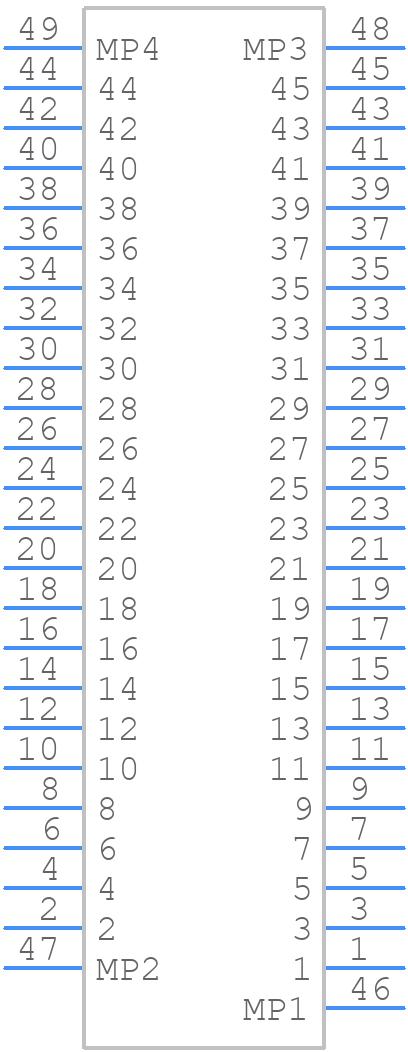

Symbol

click to zoom

PCB Footprints

TF38-45S-0.5SV(830) - Hirose PCB footprint - Other - Other - TF38-45S-0.5SV(830)-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TF38-45S-0.5SV(830)
Part Number TF38-45S-0.5SV(830)
Manufacturer Hirose
Pin Count 49
Part Category Connector
Package Category Other
Footprint Name Other - TF38-45S-0.5SV(830)-3
Released Date Dec 2, 2018
Last Modified Date May 22, 2025 7:58 AM UTC
Pinout / Pin List Click Here (Member Only)

TF38-45S-0.5SV(830) Details

Manufacturer Part Number:
TF38-45S-0.5SV(830)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
Connector Type:
FFC/FPC CONNECTOR

TF38-45S-0.5SV(830) Frequently Asked Questions (FAQs)

The recommended mating cycle for TF38-45S-0.5SV(830) connectors is 500 cycles.
Yes, TF38-45S-0.5SV(830) connectors are designed to withstand high-vibration environments and are suitable for use in such applications.
The operating temperature range for TF38-45S-0.5SV(830) connectors is -40°C to 105°C.
Yes, TF38-45S-0.5SV(830) connectors are compatible with lead-free soldering processes and meet the requirements of the RoHS directive.
The typical contact resistance for TF38-45S-0.5SV(830) connectors is 10mΩ or less.

Trust Checks

Community Provided

System Verified

Community Approved

TF38-45S-0.5SV(830) Overview

Use the download button to access the TF38-45S-0.5SV(830) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TF38-, or try a keyword search, such as Headers and Edge Type Connectors
