A recommended PCB layout for the TFBR4650-TR1 is to use a symmetrical layout with the device centered on the PCB, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a solid ground plane and to avoid routing high-frequency signals near the device.
To ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
The TFBR4650-TR1 has an integrated ESD protection circuit, but it's still recommended to follow proper ESD handling procedures during assembly and testing. The device can withstand ESD pulses up to 2 kV according to the Human Body Model (HBM) and 150 V according to the Machine Model (MM).
Yes, the TFBR4650-TR1 can be used in switching regulator applications, but it's essential to ensure that the device is operated within its specified frequency range and that the output voltage is properly filtered to prevent high-frequency noise from affecting the device's performance.
To troubleshoot issues with the TFBR4650-TR1, it's recommended to follow a systematic approach, starting with verifying the device's pinout and connections, then checking the input and output voltages, and finally analyzing the device's operating frequency and noise levels. Vishay Intertechnologies also provides application notes and technical support resources to help with troubleshooting.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFBR4650-TR1 Overview

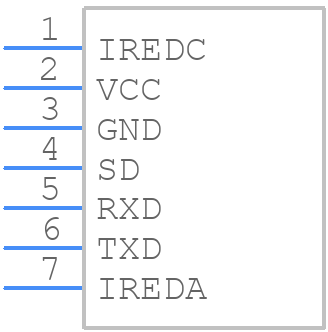

Use the download button to access the TFBR4650-TR1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TFBR4,
or try a keyword search, such as Other Interface ICs
