TFBS4650-TT3 footprint, schematic symbol and 3D model by Vishay

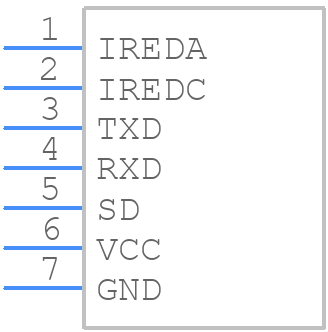

Symbol

click to zoom

PCB Footprints

TFBS4650-TT3 - Vishay PCB footprint - Other - Other - TFBS4650-TT3-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFBS4650-TT3
Part Number TFBS4650-TT3
Manufacturer Vishay
Pin Count 7
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TFBS4650-TT3-2
Released Date Oct 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFBS4650-TT3 Details

Manufacturer Part Number:
TFBS4650-TT3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-7
HTS Code:
8542.39.00.60
Manufacturer:
Vishay Intertechnologies
Consumer IC Type:
TRANSMITTER/RECEIVER IC
JESD-30 Code:
R-XSMA-N7
Length:
6.8 mm
Moisture Sensitivity Level:
4
Number of Functions:
1
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
3 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.4 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.95 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
20
Transmission Media:
INFRARED
Width:
1.6 mm

TFBS4650-TT3 Frequently Asked Questions (FAQs)

The recommended PCB footprint for TFBS4650-TT3 is a rectangular pad with a size of 1.5 mm x 0.8 mm, with a thermal via array underneath for heat dissipation.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the thermal stress on the component.
The maximum allowed voltage derating for TFBS4650-TT3 is 80% of the maximum rated voltage, to ensure reliable operation and prevent premature failure.
To handle ESD protection for TFBS4650-TT3, use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded. Avoid touching the component pins or PCB traces to prevent ESD damage.
The recommended storage condition for TFBS4650-TT3 is in a dry, cool place with a temperature range of 20°C to 30°C, and humidity below 60%. Avoid exposing the component to direct sunlight or moisture.

Trust Checks

Expert Contribution

System Verified

Community Approved

TFBS4650-TT3 Overview

Use the download button to access the TFBS4650-TT3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TFBS4, or try a keyword search, such as Remote Control ICs

Parts related to TFBS4650-TT3

Showing 0 results

Image	Part Number	Model
	TFBS4650-TR1 Vishay Semiconductors Transmitter/Receiver IC, Infrared, SMA7
	TFBS4650-TR3 Vishay Semiconductors Transmitter/Receiver IC, Infrared, SMA7
	TFBS4650-TT3 Vishay Semiconductors Transmitter/Receiver IC, Infrared
	TFBS4650-TR4 Vishay Semiconductors Transmitter/Receiver IC, Infrared
For a full list of alternate parts for TFBS4650-TT3, check out Findchips.com
