TFBS4711-TT1 - Vishay

Description: TFBS4711-TT1 Vishay, Infrared Transceiver, 900Nm 115.2kbit/s, 8m Range, SMT, 6 x 3.1 x 1.9mm

Download TFBS4711-TT1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

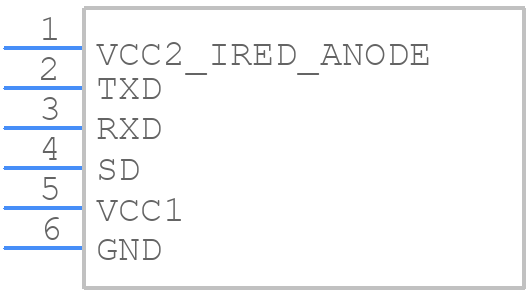

TFBS4711-TT1 - Vishay - PCB symbol
click to zoom
PCB Footprints
TFBS4711-TT1 - Vishay PCB footprint - Other - Other - 1.9 x 6 x 3
click to zoom
3D Models
TFBS4711-TT1 - Vishay - 3D model - Other - 1.9 x 6 x 3
click to zoom

TFBS4711-TT1 Details

  • Manufacturer Part Number:

    TFBS4711-TT1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • Consumer IC Type:

    TRANSMITTER/RECEIVER IC

  • JESD-30 Code:

    R-XSMA-N7

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Transmission Media:

    INFRARED

  • Width:

    1.9 mm
