TFC-106-02-F-D footprint, schematic symbol and 3D model by SAMTEC

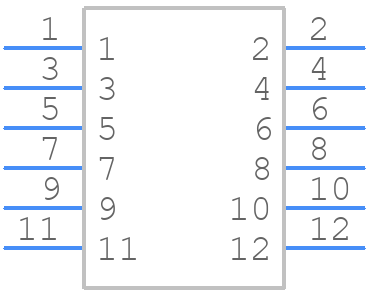

Symbol

click to zoom

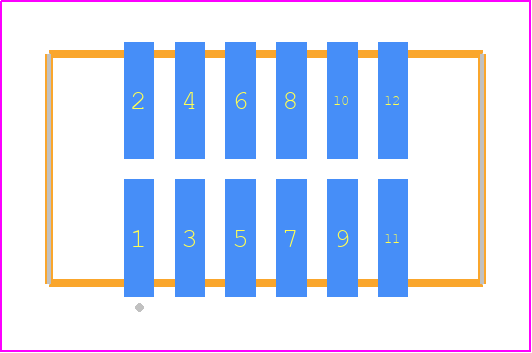

PCB Footprints

TFC-106-02-F-D - SAMTEC PCB footprint - Other - Other - TFC-106-02-XX-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFC-106-02-F-D
Part Number TFC-106-02-F-D
Manufacturer SAMTEC
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - TFC-106-02-XX-D
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFC-106-02-F-D Details

Manufacturer Part Number:
TFC-106-02-F-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8.65
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
GOLD FLASH (3)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
3.1 A
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
12

TFC-106-02-F-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TFC-106-02-F-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TFC-106-02-F-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the TFC-106-02-F-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current rating at higher temperatures to ensure reliable operation.
While the TFC-106-02-F-D connector is designed for PCB thicknesses up to 1.57 mm, Samtec recommends consulting with their technical support team for custom solutions or modifications to accommodate thicker PCBs.
The recommended mating cycle for the TFC-106-02-F-D connector is 500 cycles minimum, according to Samtec's reliability testing. However, the actual mating cycle may vary depending on the application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFC-106-02-F-D Overview

Use the download button to access the TFC-106-02-F-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TFC-1, or try a keyword search, such as Headers and Edge Type Connectors
