TFC-115-01-L-D-A - SAMTEC

Description: Headers & Wire Housings Tiger Eye Cost-Effective Terminal Strip, .050" Pitch

Download TFC-115-01-L-D-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TFC-115-01-L-D-A - SAMTEC - PCB symbol
click to zoom
PCB Footprints

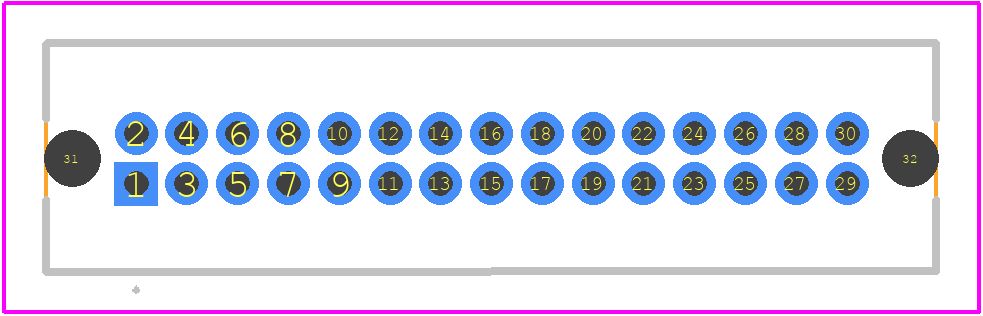

TFC-115-01-L-D-A - SAMTEC PCB footprint - Other - Other - TFC-115-01-L-D-A-3
click to zoom
3D Models
TFC-115-01-L-D-A - SAMTEC - 3D model - Other - TFC-115-01-L-D-A-3
click to zoom

TFC-115-01-L-D-A Details

  • Manufacturer Part Number:

    TFC-115-01-L-D-A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8.65

  • Additional Feature:

    TIGER EYE SYSTEM, SHROUDED

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3.1 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

TFC-115-01-L-D-A Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the TFC-115-01-L-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the TFC-115-01-L-D-A connector is designed to withstand vibration and shock according to IEC 61373 Cat 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The TFC-115-01-L-D-A connector has an operating temperature range of -55°C to +125°C, making it suitable for most industrial and commercial applications.
  • Yes, the TFC-115-01-L-D-A connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The TFC-115-01-L-D-A connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TFC-115-01-L-D-A Overview

Use the download button to access the TFC-115-01-L-D-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFC-1, or try a keyword search, such as Headers and Edge Type Connectors
