TFC-140-02-F-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

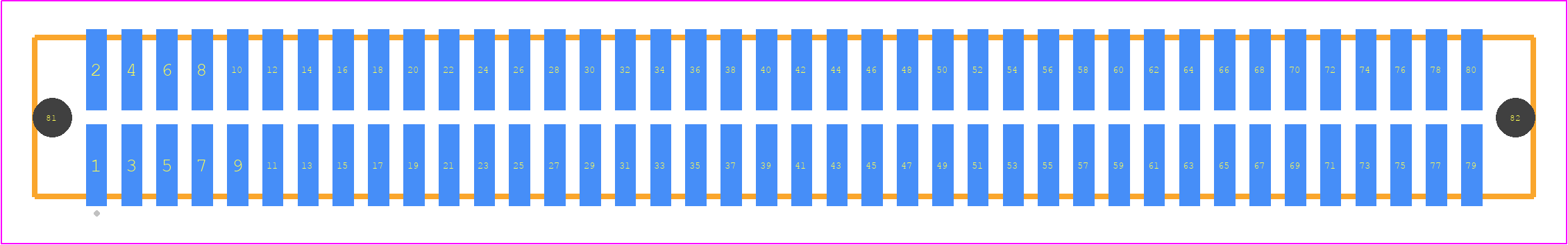

PCB Footprints

TFC-140-02-F-D-A - SAMTEC PCB footprint - Other - Other - TFC-140-02-XX-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFC-140-02-F-D-A
Part Number TFC-140-02-F-D-A
Manufacturer SAMTEC
Pin Count 80
Part Category Connector
Package Category Other
Footprint Name Other - TFC-140-02-XX-D-A
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFC-140-02-F-D-A Details

Manufacturer Part Number:
TFC-140-02-F-D-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8.75
Additional Feature:
TIGER EYE SYSTEM; SHROUDED
Body Breadth:
0.225 inch
Body Length:
4.125 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
825VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
FLASH inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2.9 A
Reference Standard:
CSA; UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
80

TFC-140-02-F-D-A Frequently Asked Questions (FAQs)

The recommended mating sequence for TFC-140-02-F-D-A is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the TFC-140-02-F-D-A is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The TFC-140-02-F-D-A has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the TFC-140-02-F-D-A is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of lead-free soldering, ensuring reliable connections and minimizing the risk of solder joint failure.
The typical current rating for the TFC-140-02-F-D-A is 1.7A per contact. However, it's essential to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFC-140-02-F-D-A Overview

Use the download button to access the TFC-140-02-F-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TFC-1, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to TFC-140-02-F-D-A

Showing 0 results

Image	Part Number	Model
	TFC-140-02-L-D-A Samtec Inc Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
For a full list of alternate parts for TFC-140-02-F-D-A, check out Findchips.com
