TFF1014HN/N1,115 - NXP

Description: NXP - TFF1014HN/N1,115 - RF Mixer/Multiplier, 10.7GHz to 11.7GHz, 4.5V to 5.5V, VQFN-16

Download TFF1014HN/N1,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

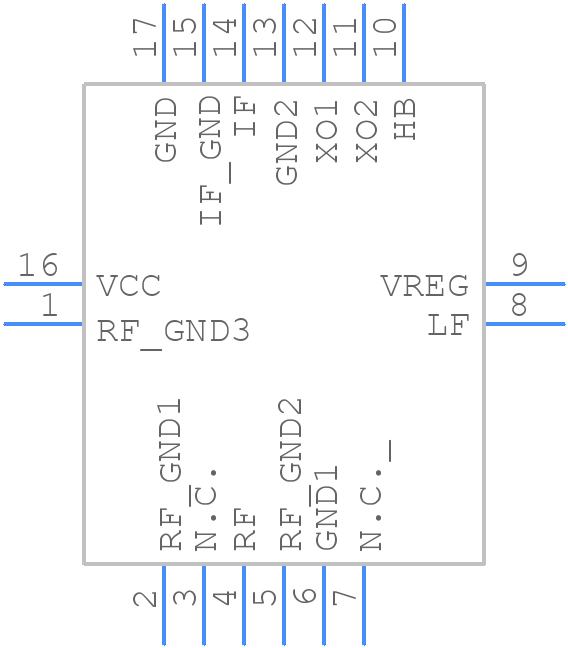

TFF1014HN/N1,115 - NXP - PCB symbol
click to zoom
PCB Footprints
TFF1014HN/N1,115 - NXP PCB footprint - Other - Other - SOT763-1_2022
click to zoom
3D Models
TFF1014HN/N1,115 - NXP - 3D model - Other - SOT763-1_2022
click to zoom

TFF1014HN/N1,115 Details

  • Manufacturer Part Number:

    TFF1014HN/N1,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    MO-241, SOT-763-1, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT763-1

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.1X.14,20

  • Power Supplies:

    5 V

  • Surface Mount:

    YES

TFF1014HN/N1,115 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible, and use a common mode choke to reduce EMI.
  • The device requires a bias voltage of 3.3V or 5V, and the bias current should be limited to 10mA. Use a voltage regulator or a voltage reference to ensure a stable bias voltage.
  • The device can operate from -40°C to 125°C, but the performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Use ESD protection diodes and TVS diodes to protect the device from electrostatic discharge and overvoltage. Ensure the PCB layout is designed to minimize parasitic inductance and capacitance.
  • The recommended input impedance is 50 ohms, and the output impedance is 75 ohms. Ensure the PCB layout and component selection are designed to match these impedances for optimal performance.
