Part Image

TFF1015HN/N1,115 - NXP

Description: NXP - TFF1015HN/N1,115 - RF Mixer/Multiplier, 10.7GHz to 11.7GHz, 4.5V to 5.5V, VQFN-16

Download TFF1015HN/N1,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

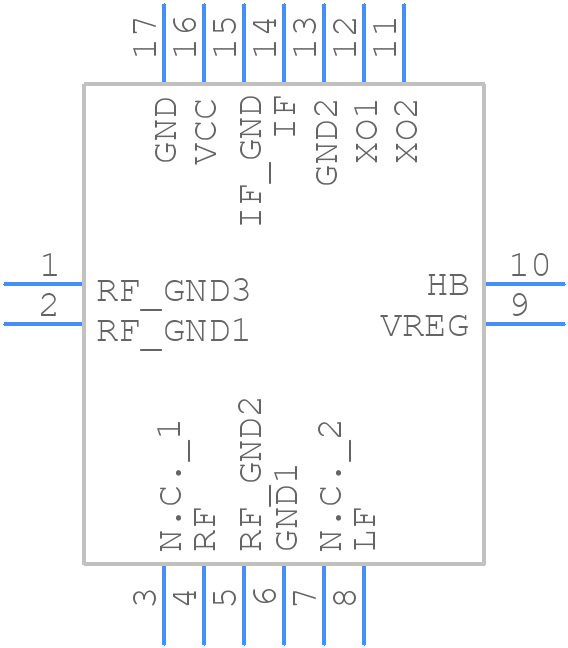

Symbol
TFF1015HN/N1,115 - NXP - PCB symbol
click to zoom
PCB Footprints
TFF1015HN/N1,115 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT763-1
click to zoom
3D Models
TFF1015HN/N1,115 - NXP - 3D model - Quad Flat No-Lead - SOT763-1
click to zoom

TFF1015HN/N1,115 Details

  • Manufacturer Part Number:

    TFF1015HN/N1,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    MO-241, SOT-763-1, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT763-1

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.1X.14,20

  • Power Supplies:

    5 V

  • Surface Mount:

    YES

TFF1015HN/N1,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TFF1015HN/N1,115 involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure the TFF1015HN/N1,115 operates within the specified temperature range, make sure to provide adequate heat dissipation, avoid overheating, and keep the device away from direct sunlight or high-temperature sources.
  • When designing a matching network for the TFF1015HN/N1,115, critical components to consider include the antenna, inductors, capacitors, and resistors. The goal is to achieve a 50-ohm impedance match between the device and the antenna.
  • To troubleshoot issues with the TFF1015HN/N1,115, start by checking the PCB layout, ensuring proper soldering and component placement. Then, verify the input voltage, current, and temperature. Use a spectrum analyzer to check the output signal, and consult the datasheet for guidance on troubleshooting common issues.
  • To ensure EMC with the TFF1015HN/N1,115, consider using a metal shield or enclosure, keeping the device away from other RF sources, and using filters or chokes to minimize electromagnetic interference (EMI).

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TFF1015HN/N1,115 Overview

Use the download button to access the TFF1015HN/N1,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFF10, or try a keyword search, such as RF/Microwave Up/Down Converters

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
