TFM-115-01-F-D-A - SAMTEC

Description: 30 Position, Dual Row, .050" Tiger Eye™ High-Reliability Terminal Strip

Download TFM-115-01-F-D-A Model

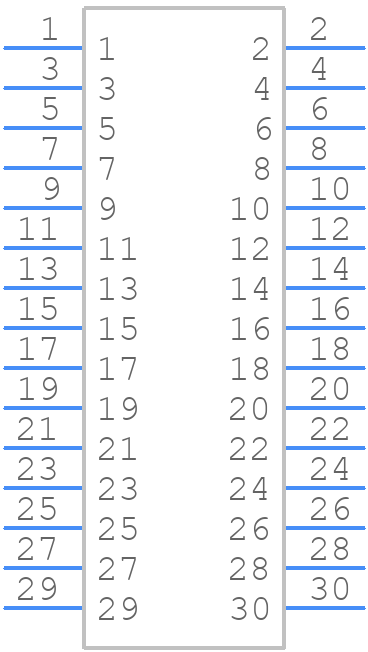

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

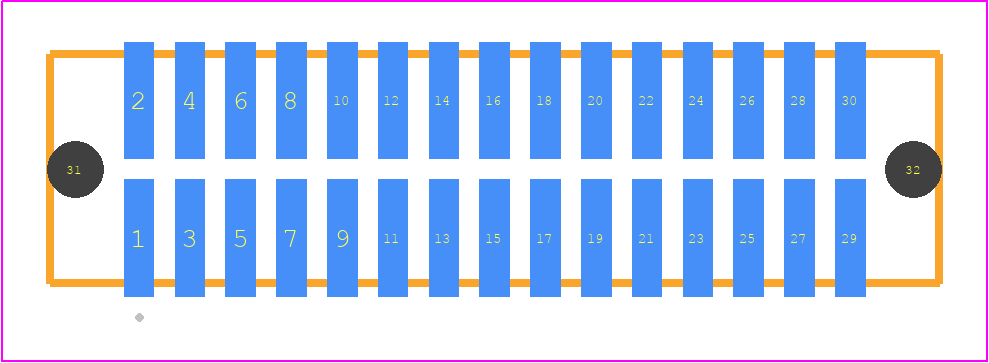

PCB Footprints
TFM-115-01-F-D-A - SAMTEC PCB footprint - Other - Other - TFM-115-YY-XXX-D-A
click to zoom

TFM-115-01-F-D-A Details

  • Manufacturer Part Number:

    TFM-115-01-F-D-A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.225 inch

  • Body Depth:

    0.22 inch

  • Body Length:

    0.875 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

TFM-115-01-F-D-A Frequently Asked Questions (FAQs)

  • The recommended mating sequence for TFM-115-01-F-D-A is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the TFM-115-01-F-D-A is designed for high-speed applications up to 28 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
  • The operating temperature range for TFM-115-01-F-D-A is -55°C to 125°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
  • Yes, the TFM-115-01-F-D-A is compatible with lead-free soldering processes. Samtec Inc. recommends following the recommended soldering profile to ensure reliable connections.
  • The typical insertion force for TFM-115-01-F-D-A is around 10-15 N (2.2-3.3 lbf) per contact. However, this may vary depending on the specific application and mating sequence.
