TFM-115-02-STL-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

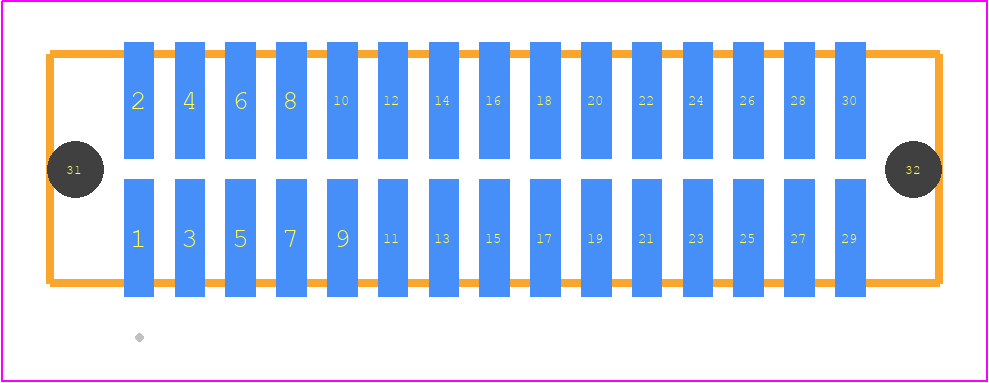

TFM-115-02-STL-D-A - SAMTEC PCB footprint - Other - Other - TFM-115-ZZ-XXX-D-A

click to zoom

3D Models

TFM-115-02-STL-D-A - SAMTEC - 3D model - Other - TFM-115-ZZ-XXX-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-115-02-STL-D-A
Part Number TFM-115-02-STL-D-A
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - TFM-115-ZZ-XXX-D-A
Released Date Jun 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFM-115-02-STL-D-A Details

Manufacturer Part Number:
TFM-115-02-STL-D-A
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
9.4
Board Mounting Option:
PEG
Body Breadth:
0.225 inch
Body Depth:
0.22 inch
Body Length:
0.875 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e0
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.429 mm
Plating Thickness:
30u inch
Rated Current (Signal):
3.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30
UL Flammability Code:
94V-0

TFM-115-02-STL-D-A Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TFM-115-02-STL-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TFM-115-02-STL-D-A connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the TFM-115-02-STL-D-A connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
The TFM-115-02-STL-D-A connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For harsh environments, consider using a connector with a higher MSL rating or additional sealing measures.
The recommended mating cycle for the TFM-115-02-STL-D-A connector is 500-1000 cycles, depending on the application and environmental conditions. Exceeding this cycle count may affect the connector's reliability and performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFM-115-02-STL-D-A Overview

Use the download button to access the TFM-115-02-STL-D-A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1, or try a keyword search, such as Headers and Edge Type Connectors
