TFM-118-01-STL-D-RA - SAMTEC

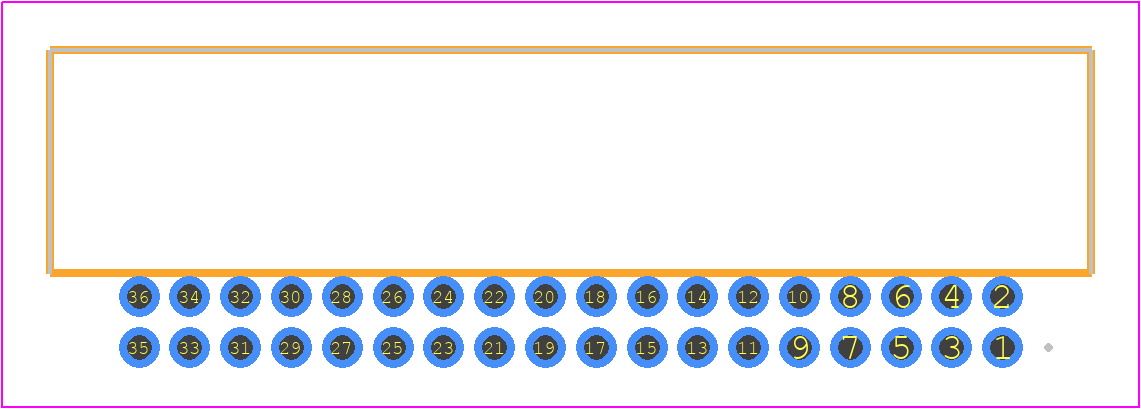

TFM-118-01-STL-D-RA Details

• Manufacturer Part Number:

  TFM-118-01-STL-D-RA

• Part Life Cycle Code:

  Active

• Direct Group:

  CH30030402007111001100850104006YY01YY0509YY10

• Similar Group:

  CH30030402007111001100850104006YY01YY05

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  7

• Body Breadth:

  0.225 inch

• Body Depth:

  0.29 inch

• Body Length:

  1.025 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  TIN LEAD

• Contact Finish Termination:

  Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.27 mm

• Rated Current (Signal):

  3.2 A

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  36

• UL Flammability Code:

  94V-0
