TFM-125-01-F-D-RA - SAMTEC

Description: 50 Position, High-Reliability Tiger Eye™ Terminal Strips, .050" Pitch, Right Angle

Download TFM-125-01-F-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TFM-125-01-F-D-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

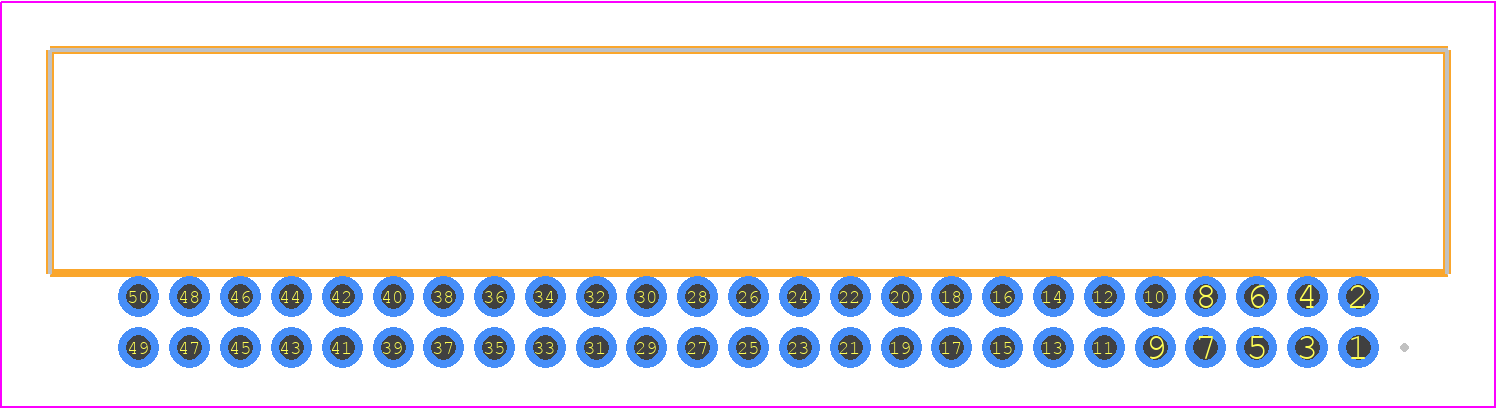

TFM-125-01-F-D-RA - SAMTEC PCB footprint - Other - Other - TFM-125-01-XXX-D-RA
click to zoom

TFM-125-01-F-D-RA Details

  • Manufacturer Part Number:

    TFM-125-01-F-D-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Body Breadth:

    0.225 inch

  • Body Depth:

    0.29 inch

  • Body Length:

    1.375 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    3.2 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

TFM-125-01-F-D-RA Frequently Asked Questions (FAQs)

  • The recommended mating sequence for TFM-125-01-F-D-RA is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the TFM-125-01-F-D-RA is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
  • The TFM-125-01-F-D-RA is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
  • The recommended torque for the screw locks on the TFM-125-01-F-D-RA is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
  • The TFM-125-01-F-D-RA is designed for use with standard 1.57 mm (0.062 in) thick PCBs. However, Samtec offers customization options for different PCB thicknesses and materials. Consult with Samtec's technical support or application engineers to determine the feasibility of using this connector with your specific PCB requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TFM-125-01-F-D-RA Overview

Use the download button to access the TFM-125-01-F-D-RA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1, or try a keyword search, such as Headers and Edge Type Connectors
