TFM-130-01-L-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

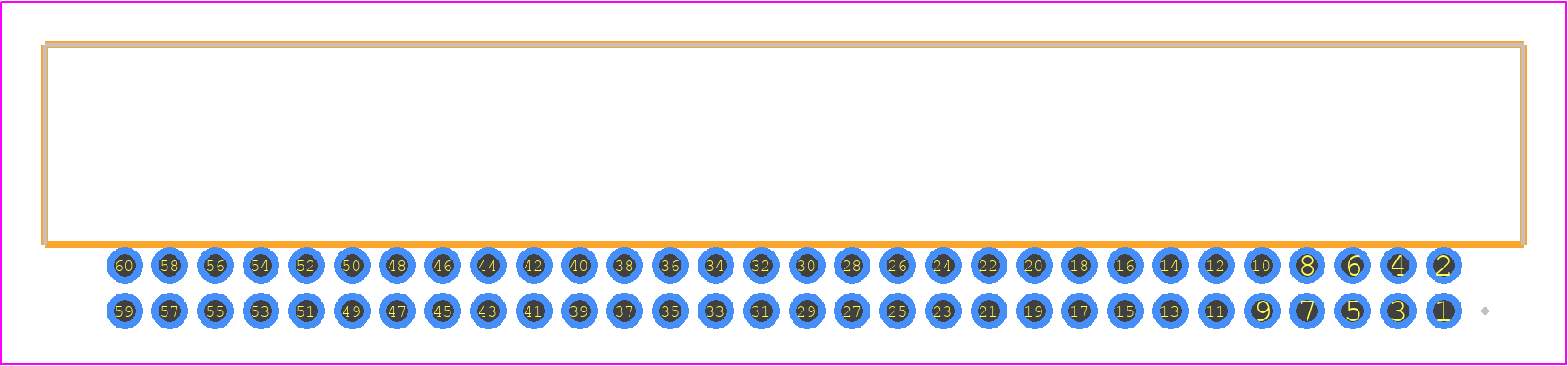

TFM-130-01-L-D-RA - SAMTEC PCB footprint - Other - Other - TFM-130-01-XXX-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-130-01-L-D-RA
Part Number TFM-130-01-L-D-RA
Manufacturer SAMTEC
Pin Count 60
Part Category Connector
Package Category Other
Footprint Name Other - TFM-130-01-XXX-D-RA
Released Date Jul 2, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

TFM-130-01-L-D-RA Details

Manufacturer Part Number:
TFM-130-01-L-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
9.15
Additional Feature:
ROHS COMPLIANT
Body Breadth:
0.225 inch
Body Depth:
0.29 inch
Body Length:
1.625 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
10u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
5 A
Reference Standard:
UL, CSA
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
60
UL Flammability Code:
94V-0

TFM-130-01-L-D-RA Frequently Asked Questions (FAQs)

The recommended mating sequence for TFM-130-01-L-D-RA is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the TFM-130-01-L-D-RA is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection even in harsh conditions.
The maximum operating temperature for TFM-130-01-L-D-RA is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
Yes, the TFM-130-01-L-D-RA is designed for automated assembly processes, including pick-and-place and robotic assembly. The connector's design and packaging are optimized for efficient assembly.
The typical lead time for delivery of TFM-130-01-L-D-RA varies depending on the quantity and availability. However, Samtec typically offers a lead time of 2-4 weeks for standard orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFM-130-01-L-D-RA Overview

Use the download button to access the TFM-130-01-L-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TFM-1, or try a keyword search, such as Headers and Edge Type Connectors
