TFM-146-02-S-D-P footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

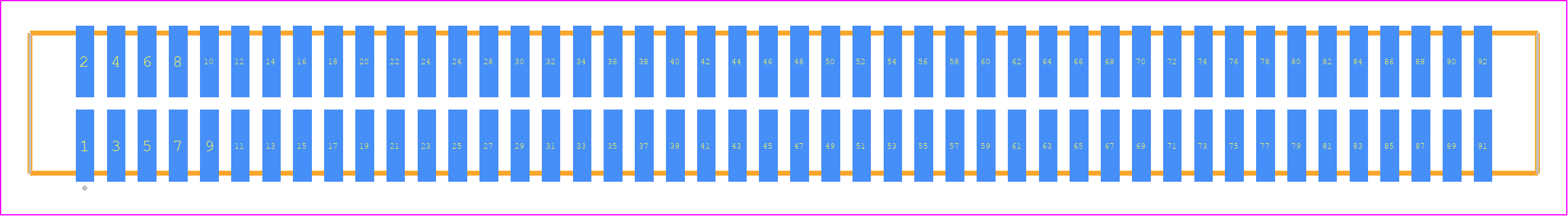

TFM-146-02-S-D-P - SAMTEC PCB footprint - Other - Other - TFM-146-ZZ-XXX-D-P

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TFM-146-02-S-D-P
Part Number TFM-146-02-S-D-P
Manufacturer SAMTEC
Pin Count 92
Part Category Connector
Package Category Other
Footprint Name Other - TFM-146-ZZ-XXX-D-P
Released Date Jun 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TFM-146-02-S-D-P Details

Manufacturer Part Number:
TFM-146-02-S-D-P
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TFM-146-02-S-D-P Overview

Use the download button to access the TFM-146-02-S-D-P schematic symbol and PCB footprint.
