- Part Number TFS160N-3.3
- Manufacturer Mornsun Power
- Pin Count 13
- Part Category Power Supply
- Package Category Other

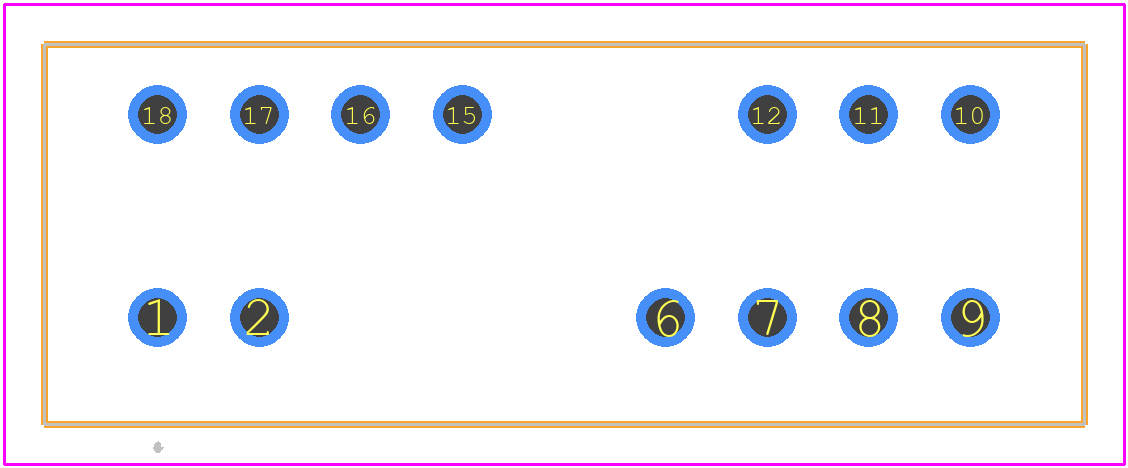

- Footprint Name Other - TFS160N-3.3-2
- Released Date Jan 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TFS160N-3.3 Details
-
Manufacturer Part Number:
TFS160N-3.3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
MORNSUN
-
Analog IC - Other Type:
ANALOG CIRCUIT
TFS160N-3.3 Frequently Asked Questions (FAQs)
-
MORNSUN recommends a PCB layout with a large copper area connected to the tab of the device, and a thermal via array underneath the device to dissipate heat efficiently.
-
To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves, and consider adding heat sinks or thermal management systems to keep the device temperature within the specified range.
-
The maximum capacitance load that can be driven by the TFS160N-3.3 is 10uF. Exceeding this value may cause instability or oscillation.
-
Yes, the TFS160N-3.3 can be used in switching power supply designs, but it's essential to ensure that the device is properly bypassed and filtered to prevent high-frequency noise from affecting the output voltage.
-
MORNSUN recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF as the input capacitor for the TFS160N-3.3.
Trust Checks
Expert Contribution
System Verified
Community Approved
TFS160N-3.3 Overview

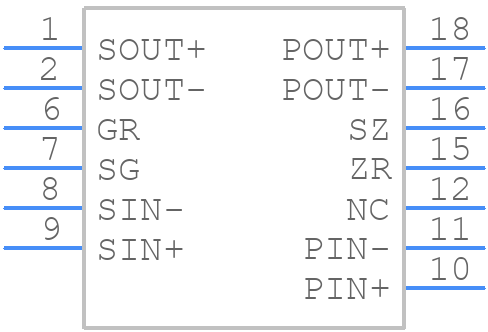

Use the download button to access the TFS160N-3.3 schematic symbol, PCB footprint, and 3D model.
