TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
The TFSB10055375-1103A1 has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management and heat dissipation. This can be achieved through proper PCB design, thermal vias, and heat sinks, as well as ensuring good airflow around the component.
TDK recommends following the JEDEC J-STD-020D.1 standard for soldering conditions and techniques. The recommended soldering temperature is between 235°C to 260°C, with a maximum soldering time of 3 seconds. It's also essential to use a solder with a melting point above 217°C to prevent thermal damage.
To ensure reliability and longevity, it's essential to follow TDK's recommended storage and handling guidelines. This includes storing the components in a dry, cool place, away from direct sunlight and moisture. Additionally, implementing proper ESD protection, using a conformal coating, and following a robust design and testing process can help ensure the component's reliability in harsh environments.
The TFSB10055375-1103A1 is a high-frequency, low-loss filter suitable for various applications, including 5G base stations, wireless communication systems, radar systems, and satellite communications. It can also be used in other high-frequency applications where low insertion loss and high attenuation are required.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFSB10055375-1103A1 Overview

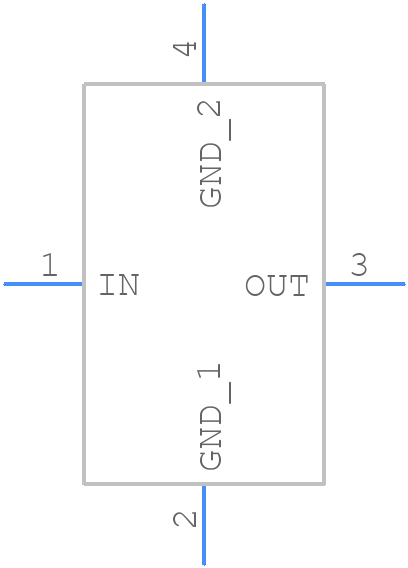

Use the download button to access the TFSB10055375-1103A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFSB1,
or try a keyword search, such as General Purpose Passive Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
