TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
The TFSZ06052460-3310A2X has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using thermal vias, heat sinks, or thermal pads, and ensuring good airflow around the component.
TDK recommends following the JEDEC J-STD-020D.1 standard for soldering. The recommended soldering temperature profile is 260°C (peak temperature) with a dwell time of 30-60 seconds. It's essential to follow these guidelines to prevent damage to the component.
To ensure reliability, follow proper handling, storage, and assembly procedures. Avoid exposing the component to mechanical stress, moisture, or extreme temperatures. Implement a robust design, including adequate decoupling, filtering, and protection circuits, to minimize electrical stress.
The TFSZ06052460-3310A2X has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Latch-up protection is not explicitly mentioned in the datasheet, so it's recommended to implement external latch-up protection circuits if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFSZ06052460-3310A2X Overview

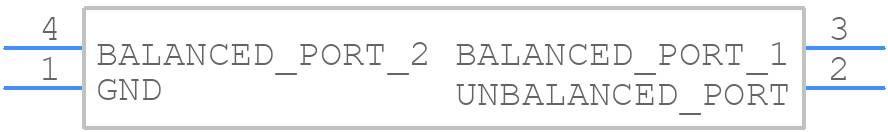

Use the download button to access the TFSZ06052460-3310A2X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFSZ0,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
