TG01-FC03N1LF - Halo Electronics

Description: Audio Transformers / Signal Transformers FIBRE CH ISO MOD SMD Dual Core 1062.5MHz

Download TG01-FC03N1LF Model

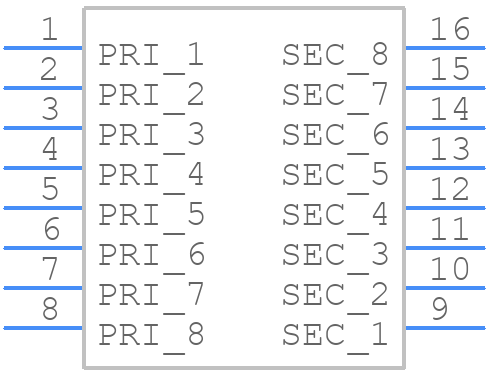

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TG01-FC03N1LF - Halo Electronics PCB footprint - Other - Other - TG01-FC03N1LF-2
click to zoom
3D Models
TG01-FC03N1LF - Halo Electronics  - 3D model - Other - TG01-FC03N1LF-2
click to zoom

TG01-FC03N1LF Details

  • Manufacturer Part Number:

    TG01-FC03N1LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Halo Electronics Inc

  • YTEOL:

    6.65

  • Application:

    GENERAL PURPOSE

  • Approvals:

    CUL; EN; UL

  • Height:

    5.08 mm

  • Isolation Voltage:

    1500 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Primary Inductance:

    3.75 µH

  • Pulse Rise Time-Max:

    0.28 ns

  • Surface Mount:

    YES

  • Transformer Type:

    PULSE TRANSFORMER

  • Width:

    7.11 mm

TG01-FC03N1LF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting Halo Electronics' technical support. A general guideline is to follow the JEDEC standard for QFN packages.
  • To ensure reliable soldering, follow the recommended soldering profile and temperature range specified in the datasheet. Use a solder with a melting point around 220°C and a flux that is compatible with the component's finish. Avoid overheating and use a soldering iron with a temperature control.
  • The maximum operating temperature range for the TG01-FC03N1LF is -40°C to 125°C. However, it's recommended to derate the component's performance at extreme temperatures to ensure reliability.
  • To prevent ESD damage, handle the component in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding procedures during assembly. It's also recommended to use an ESD wrist strap or mat during handling.
  • Store the component in its original packaging, away from direct sunlight and moisture. Avoid bending or flexing the component, and handle it by the edges to prevent damage to the pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TG01-FC03N1LF Overview

Use the download button to access the TG01-FC03N1LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TG01-, or try a keyword search, such as Pulse/Datacom Transformers
